该项目位于生态公园 "气候之声 "内，这是拉丁美洲第一个关于气候变化的主题公园。在这个公共空间里，有五个展馆，展示了秘鲁的重要问题。森林、山脉和水、海洋、能源和可持续城市。这个致力于环境教育的举措是由秘鲁环境部与圣地亚哥-德苏尔科市政府合作推动的。一进门，游客可以看到秘鲁第一个用竹子建造的公共礼堂，它的屋顶面积超过300平方米，可容纳250人。它被认为是一个自由出入的地方，可以举办各种活动、讲座或展览。

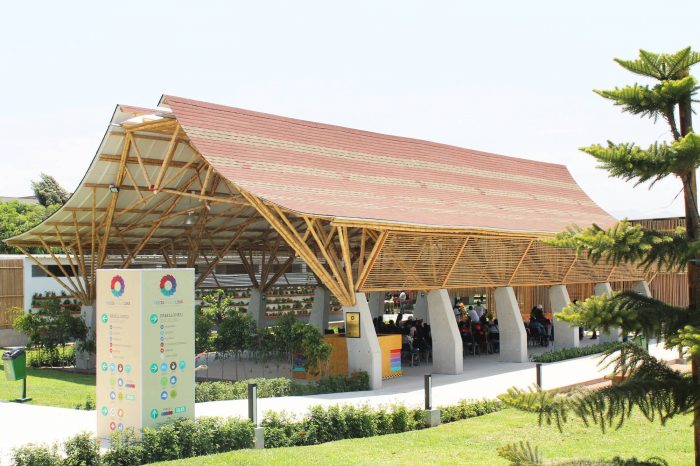

The project is located within the Ecological Park Voices for Climate, the first theme park on climate change in Latin America. In this public space, there are five pavilions that exhibit issues of importance in Peru: Forests, Mountains and Water, Oceans, Energy, and Sustainable Cities. This initiative dedicated to environmental education was promoted by the Ministry of Environment of Peru in collaboration with the Municipality of Santiago de Surco. Upon entering, visitors can observe the first public auditorium built with bamboo in Peru, which has a roofed area of more than 300 m2 with a capacity of 250 people. It is conceived as a free-access place for the organization of all kinds of events, talks, or exhibitions.
它的创新设计通过使用竹子和木材等环保材料，促进了建筑对环境影响的减少。值得注意的是，所使用的竹子是Guadua angustifolia品种，来自当地的生产者，这表明了使用可再生资源对可持续未来的重要性。为了突出竹子在结构上的多功能性和开发新的建筑技术，设计了一个创新的弧形屋顶。在它的顶部，两个屋顶部分被一个天顶开口分隔开来，让过滤后的光线从打开的竹子中穿透出来。两侧的开口使空气得以排出，为空间提供有效的自然通风。

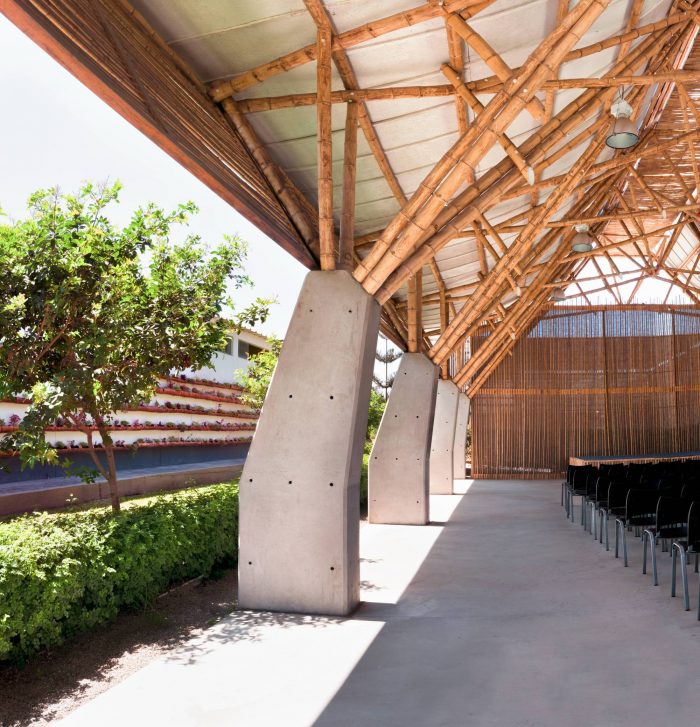

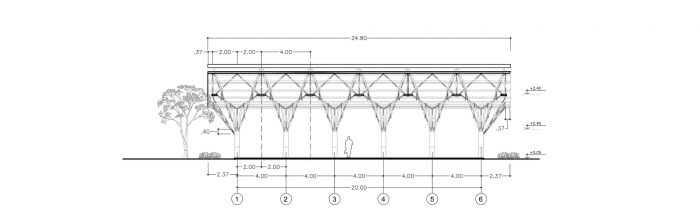

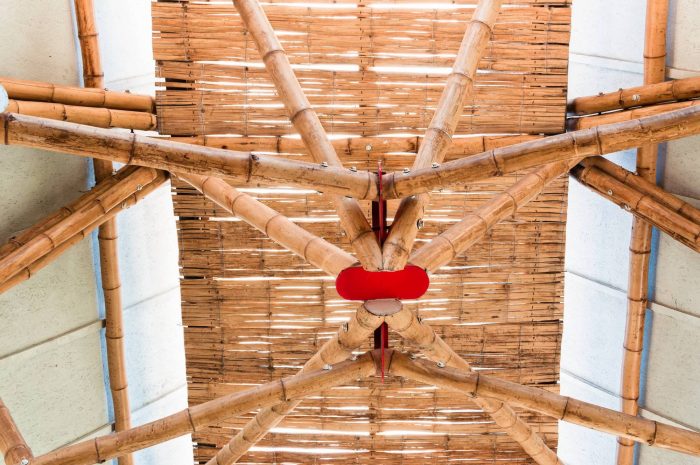

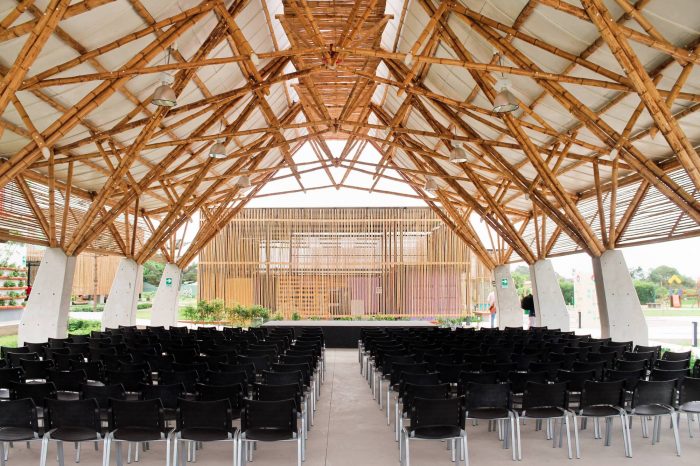

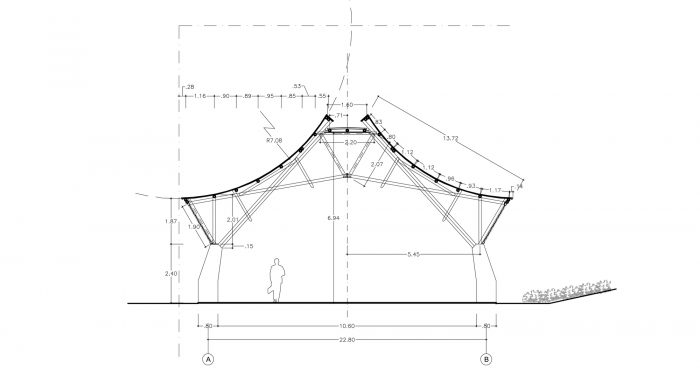

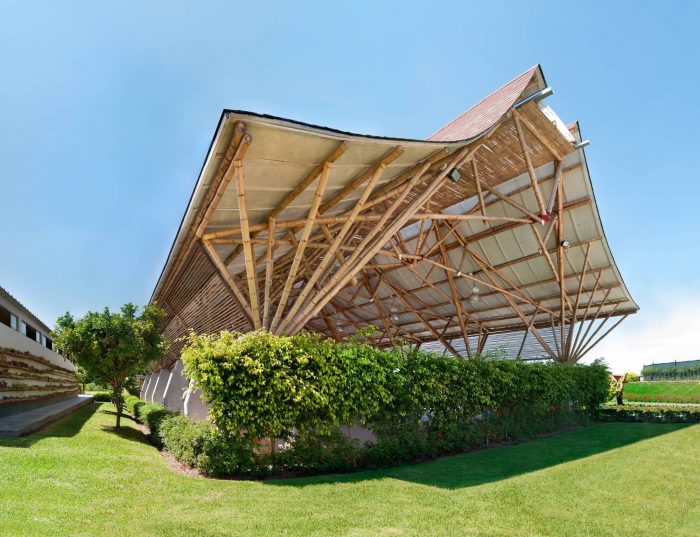

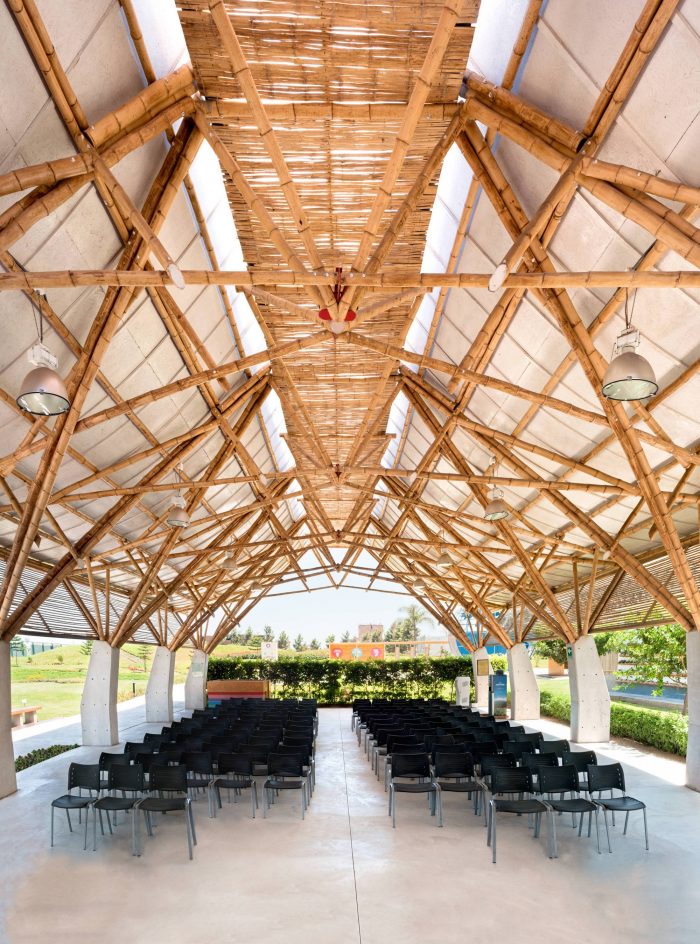

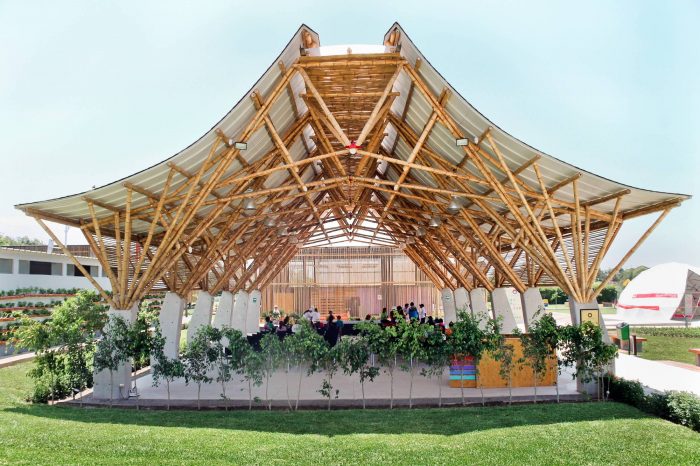

Its innovative design promotes an architecture with reduced environmental impact through the use of eco-friendly materials such as bamboo and wood. It should be noted that the bamboo used is the Guadua angustifolia species, coming from local producers, pointing out the importance of using renewable resources for a sustainable future. To highlight the structural versatility of bamboo and develop new construction techniques, an innovative curved roof was designed. At the top of it, the two roof sections are separated by a zenithal opening that lets a filtered light penetrate through opened bamboos. On both sides, openings allow the air to escape, providing effective natural ventilation of the space.
在礼堂的横向部分，安装了由植物竹种制成的百叶窗，以提供防晒功能，并形成模仿公园内其他亭子的表皮。立体结构由简单的元素组成，这些元素在地板上预制，并通过空间设计的金属连接器进行组装，在不到3个月的时间内完成了工作。在国际竹藤组织（INBAR）的支持下，这座利马市的标志性建筑得以建成。

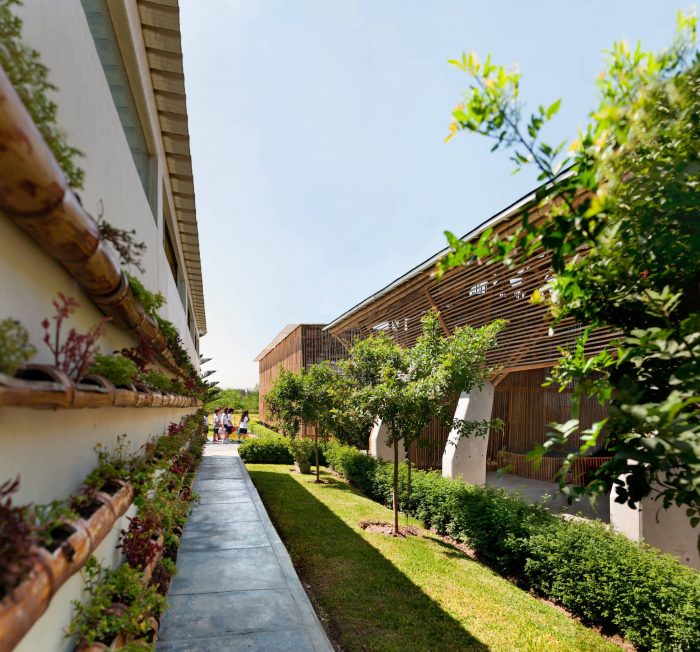

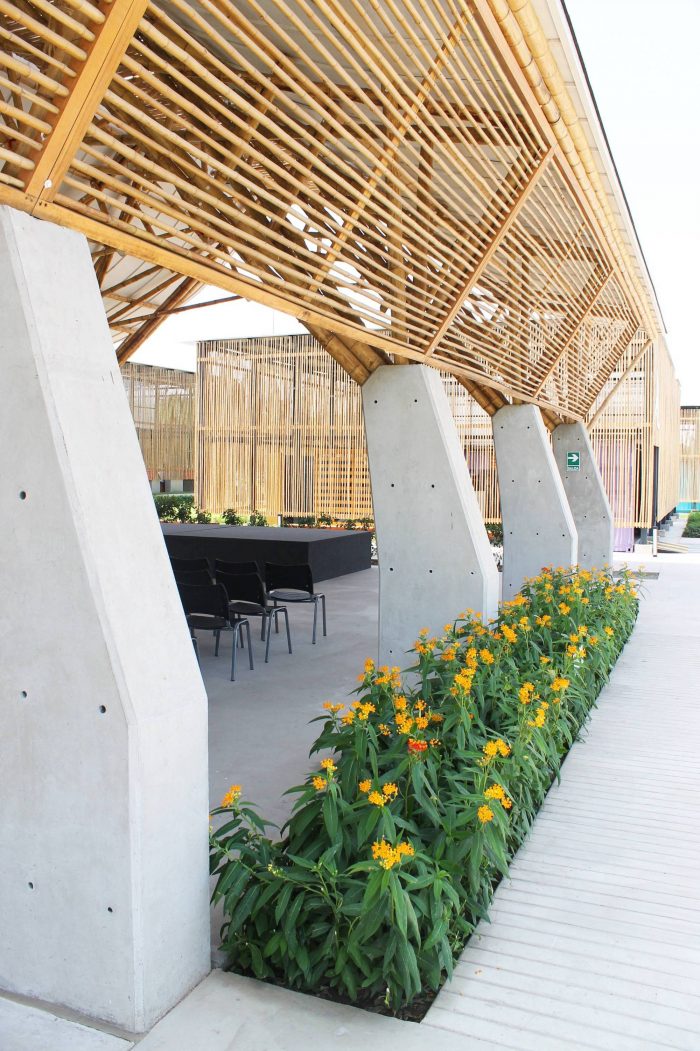

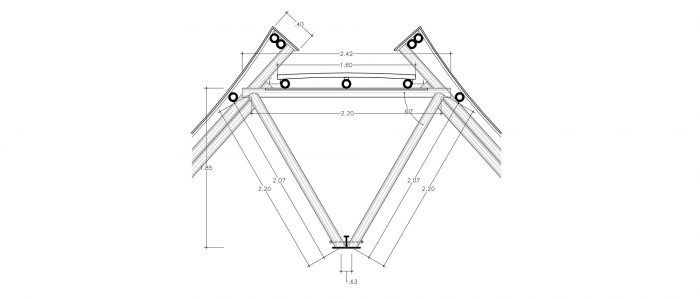

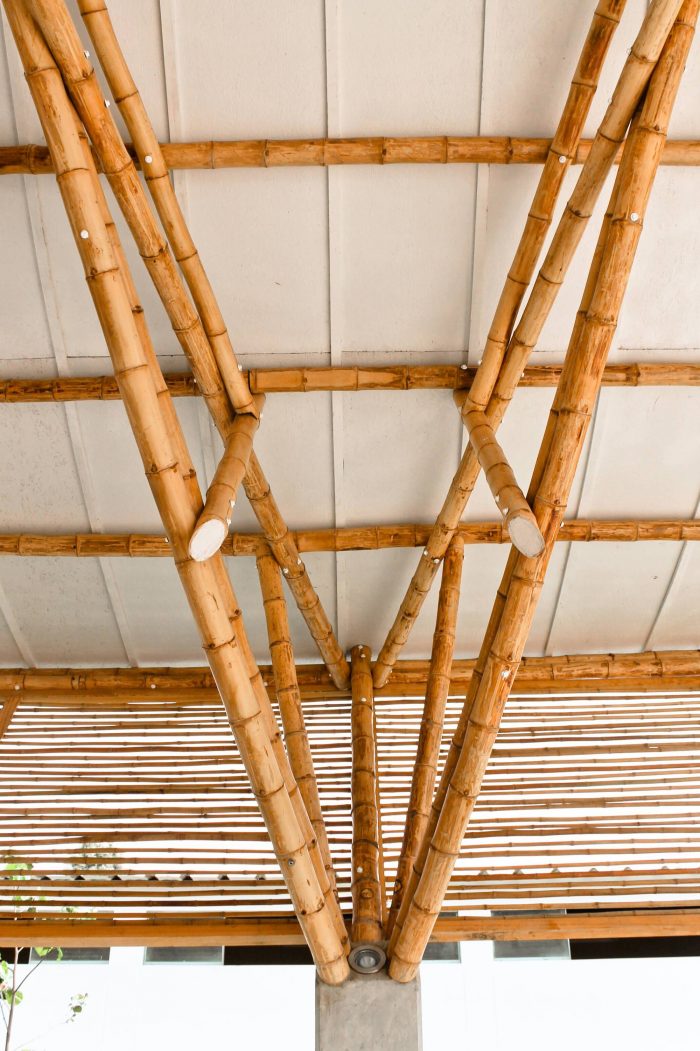

On the lateral parts of the auditorium, blinds made of the phyllostachys bamboo species were installed to provide sun protection and to form a skin that mimics the other pavilions in the park. The three-dimensional structure is composed of simple elements that were prefabricated on the floor and assembled thanks to spatially designed metal connectors, managing to finish the work in less than 3 months. The construction of this emblematic building in the city of Lima was made possible by the support of the International Bamboo and Rattan Organization – INBAR.
建筑师：Instituto de Vivienda, Urbanismo y Construcción de la USMP
面积：336平方米
年份：2015年
摄影：Yann Barnet, Claire Demoulin
制造商：AutoDesk、IKO、Computers and Structures Inc、Trimble Navigation
首席建筑师：Yann Barnet，Faouzi Jabrane
设计团队：IVUC团队
客户：国际竹藤组织、圣地亚哥德苏尔科市政府、秘鲁环境部
工程部：Gustavo Tello Fernandez
城市:Santiago de Surco
国家：秘鲁Architects: Instituto de Vivienda, Urbanismo y Construcción de la USMP
Area: 336 m²
Year: 2015
Photographs: Yann Barnet, Claire Demoulin
Manufacturers: AutoDesk, IKO, Computers and Structures Inc, Trimble Navigation
Lead Architects:Yann Barnet, Faouzi Jabrane
Design Team:Equipo del IVUC
Clients:Organización Internacional de Bambú y Ratán, Municipio de Santiago de Surco, Ministerio del Ambiente del Perú
Engineering:Gustavo Tello Fernandez
City:Santiago de Surco
Country:Peru
