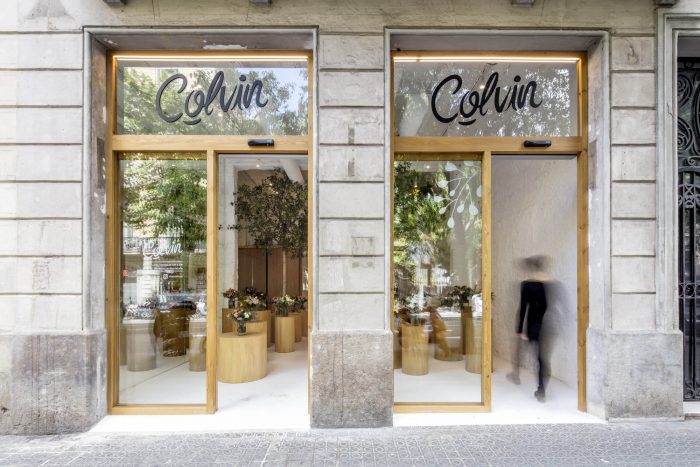

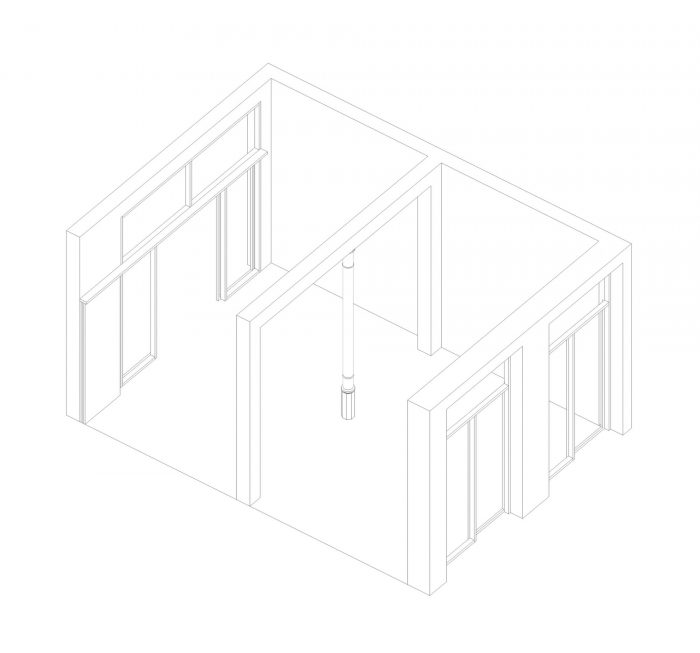

这个项目涉及到将一个原为银行办公室的空间改造成位于巴塞罗那Eixample区的创业公司Colvin的花店。设计的灵感是重新诠释一片花田,在树荫下的小路。一个新的氛围已经被创造出来,自然和人工在这里融合。第一个干预措施是通过恢复其高高的天花板和砖墙来揭示现有空间的形式和材料潜力。假天花板被拆除,以显示木梁,石膏工程被剥开,以揭示砖墙。

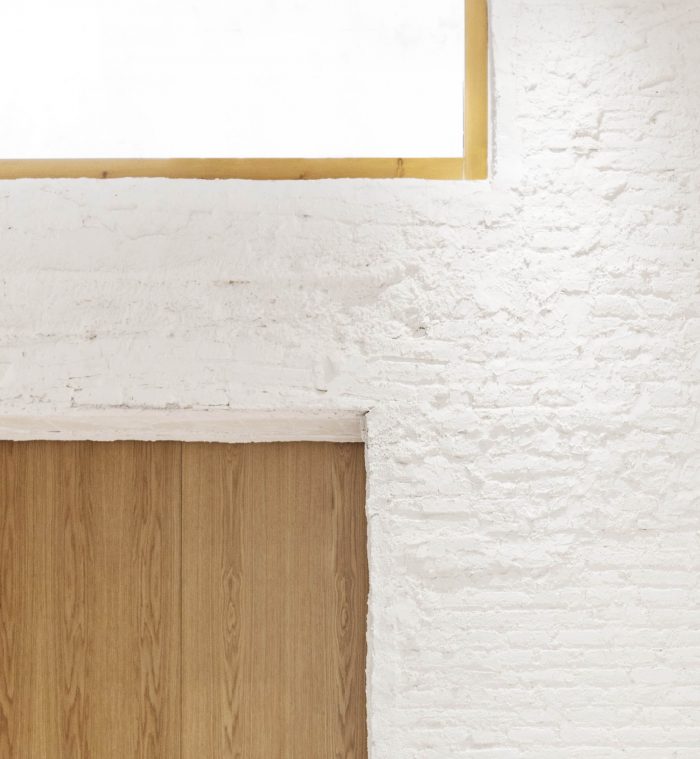

This project involves the conversion of a space that formerly housed a bank office into a florist for the startup Colvin, located in the Eixample district of Barcelona. The inspiration for the design was to reinterpret a field of flowers with pathways under the shade of the trees. A new atmosphere has been created, where the natural and the man-made fuse. The first intervention was to reveal the formal and material potential of the existent space by recovering its high ceilings and brick walls. The false ceiling was removed to show the wooden beams and the plaster-work was peeled back to uncover the brick walls.



为了提供防火结构保护,投射了一层新的防火砂浆,使天花板和结构加固梁同质化,具有相同的粗糙纹理。最后,新的连续路面、现有的墙壁和高高的天花板都被涂成了白色;重点是所包含的空间,而不是容器本身。这种对边界的物质抽象化产生了对光和物质无常的新感知。
To provide fireproof structural protection, a new layer of fire-resistant mortar was projected, homogenizing the ceiling and structural reinforcement beams with the same rough texture. Finally, the new continuous pavement, the existing walls and the high ceiling were all painted white; focusing on the contained space, not the container itself. This material abstraction of the boundaries give rise to a new perception of light and material impermanence.

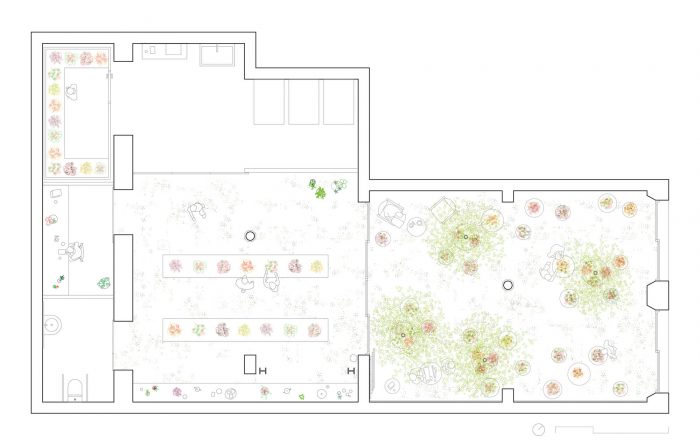

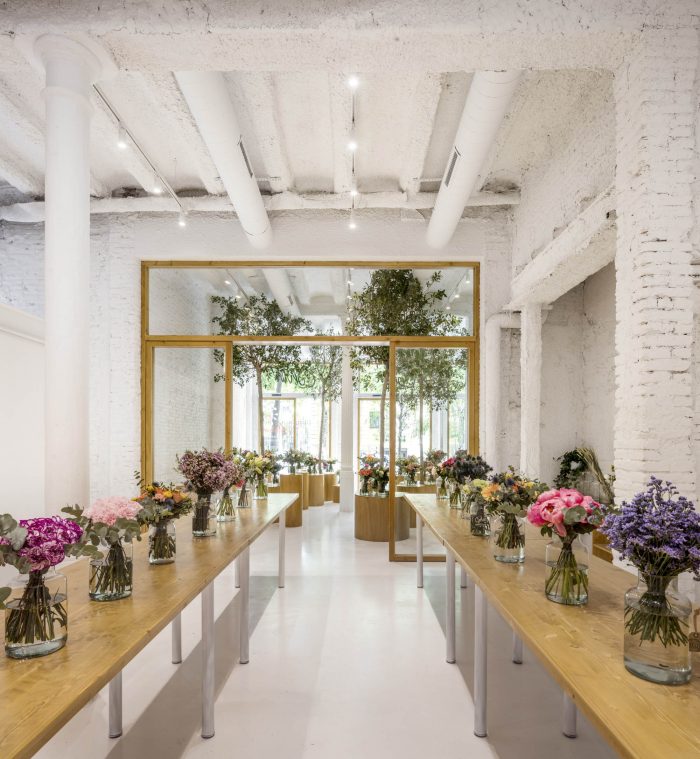

花店项目由一个展览区组成,顾客在这里选择花束,一个半开放的车间,花匠在这里制作要运送的鲜花,还有一些私人区域,如储藏室、冷藏室、办公室和厕所。这些空间之间灵活的空间关系是由滑动门系统解决的,滑动门系统根据所需的隐私程度而变化。带有木质框架的固定和移动玻璃门的组合,以及橡木滑动门,使用户可以在视觉上或声学上将活动从街道分隔到私人房间。

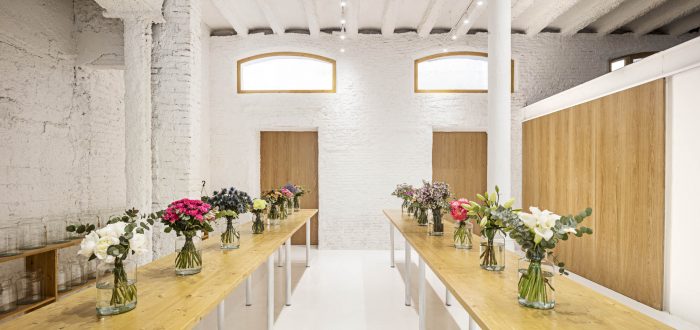

The florist program consists in an exhibition area where customers choose the bouquet, a semi-open workshop where florists create the composition of flowers to deliver and privates areas such as the store room, cold room, office and toilet. The flexible spatial relation between these spaces is solved by sliding doors systems that vary according to the degree of privacy required. The combination of fixed and mobile glass doors with wooden frames, together with the sliding oak doors, allows users to visually or acoustically separate the activities from the street to private rooms.

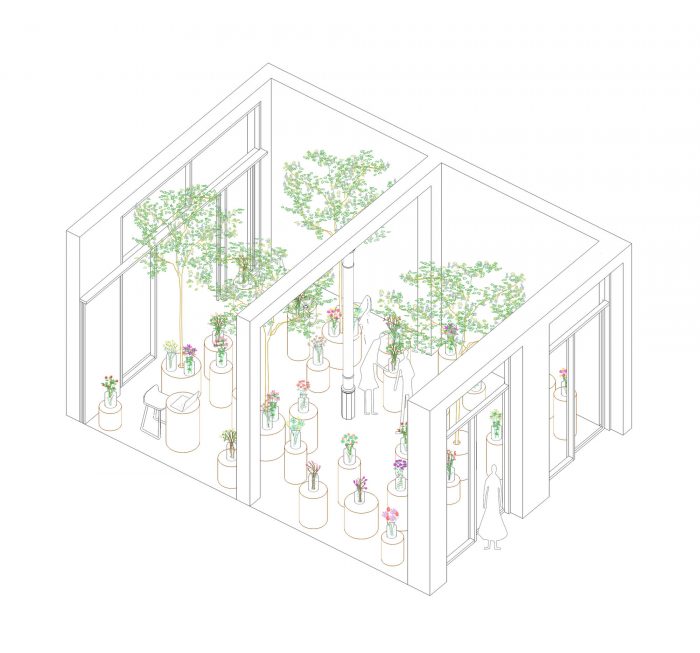

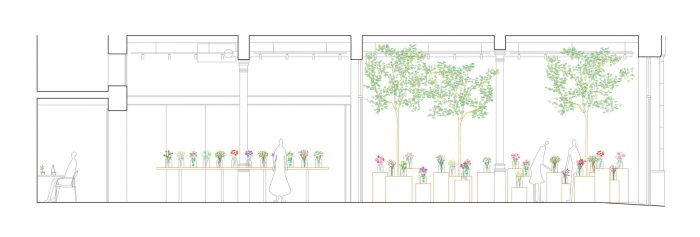

第二个干预措施是创造一种新的环境形式,鼓励人们在自然地形中探索花卉。一个新的感官风景与旧的建筑形式融合在一起,用视觉、嗅觉和触觉刺激对自然的感觉。通过这种方式,抽象的自然,被理解为充满光线的人工空间,突出了生活和具体自然的存在。树干的垂直度,或者它的人工类似物,雕塑性的铸铁柱子,加强了对一个巨大高度空间的感知。除此之外,两面大镜子在视觉上复制了空间,给顾客带来的体验是看到自己倒映在城市中的一片花田中。

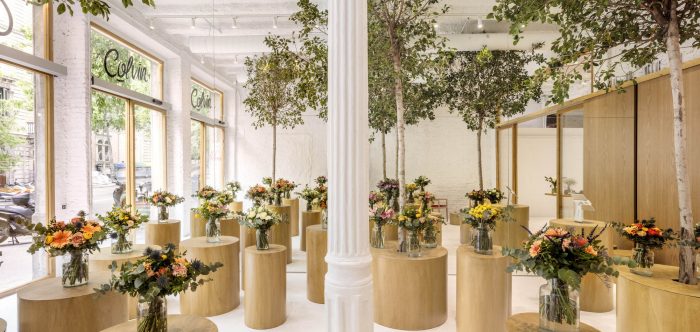

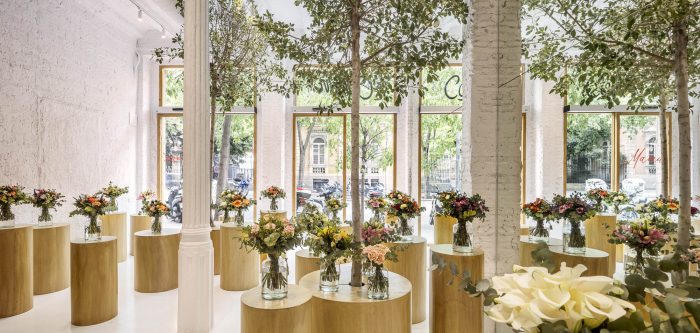

The second intervention was creating a new form of environment that encourages people to explore flowers in a natural topography. A new sensorial scenery merges with the old constructed forms, stimulating the feeling of nature with the sight, smell and touch. In this way, abstract nature, understood as the artificial space full of light, highlights the presence of living and concrete nature. The perception of a great-height-space is enhanced by the tree trunks verticality, or its artificial analogy, the sculptural cast iron column. In addition to this, two large mirrors visually duplicate the space, giving customers the experience of seeing themselves reflected in a field of flowers within the city.

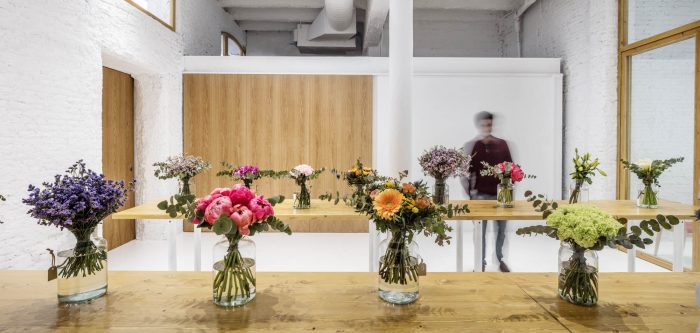

由一系列木质棱柱体形成的创新的灵活系统满足了展区的功能需求。这些定制的树干有不同的直径和高度,在独特的底座上展示五颜六色的花束,将花朵提升到眼睛的高度。遵循同样的美学概念,木质棱镜还可以作为等待区的茶桌、现金桌和树盆;用同样简单的重复元素实现不同的功能。

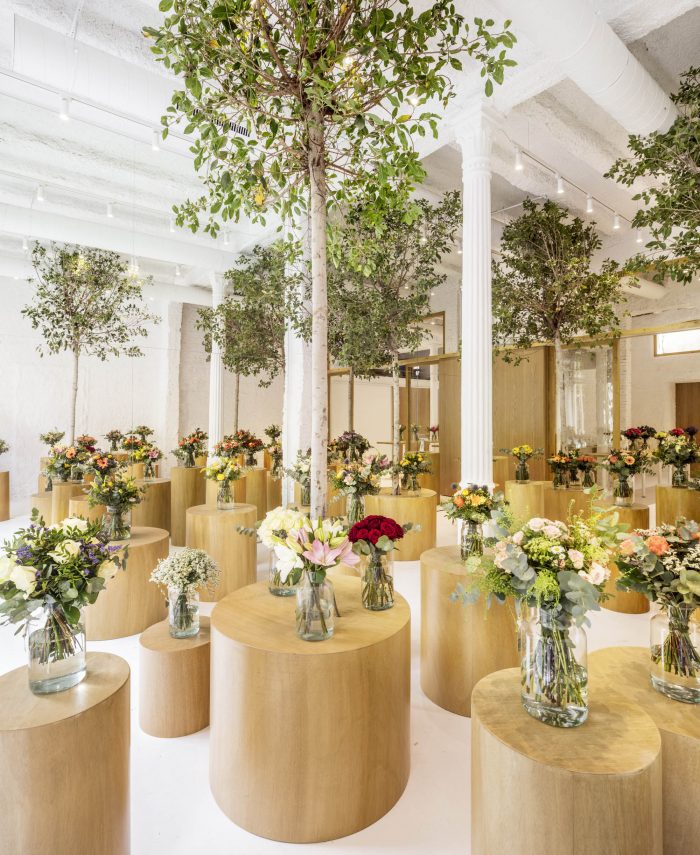

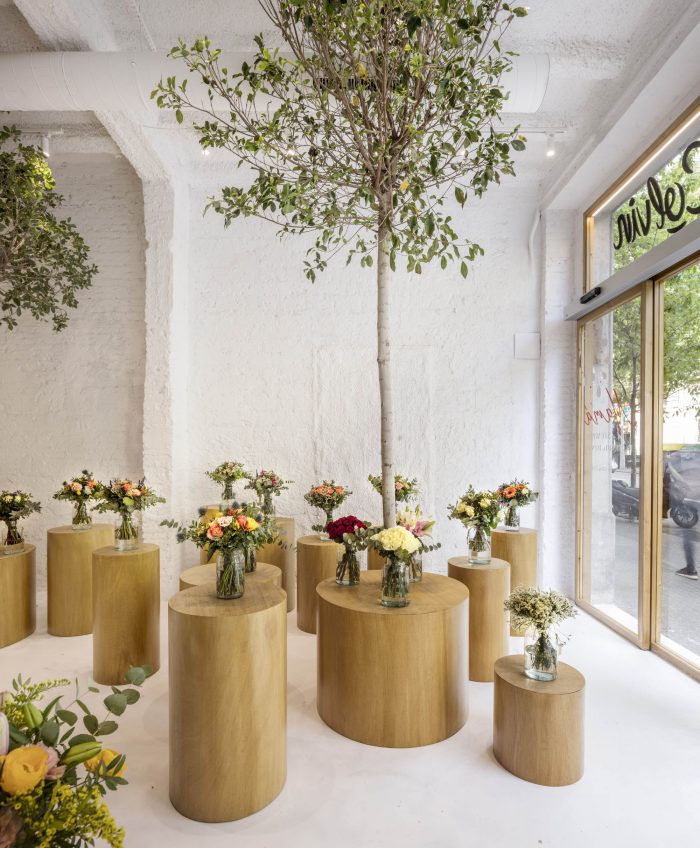

An innovative flexible system formed by a series of wooden prism volumes meets the exhibition area functional needs. These custom-made trunks have different diameters and heights, displaying the colorful bouquets in unique bases that raise the flowers at eye level. Following the same aesthetic concept, wooden prisms also serve as a tea table for the waiting area, a cash desk and tree pots; achieving different functions with the same simple repeated element.

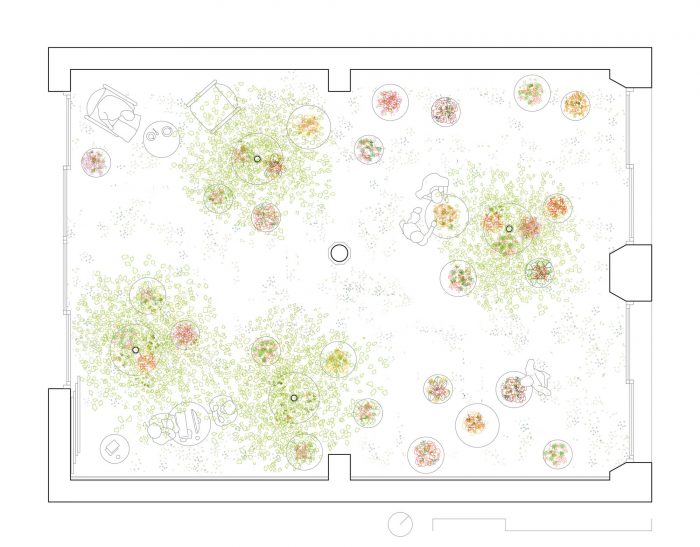

这些看似随意摆放的元素,以一种有机和动态的方式完全填充了空间,同时创造了以流通区域为原点的集群。该项目的目的是邀请每个人找到自己的方式,通过体验这个新的自然环境来迷失和与花互动。
These elements, apparently placed at random, completely fill the space in an organic and dynamic way while creating clusters that origin the circulation areas. The aim of the project is inviting each person to find his own way to get lost and interact with flowers by experiencing this new natural environment.





Architects: Roman Izquierdo Bouldstridge
Area: 123 m²
Year: 2019
Photographs: Adrià Goula
Manufacturers: JUNG, Klein, Mapei, Roca, Simón, Gavarró, Iluxión
City:Barcelona
Country:SPAIN
