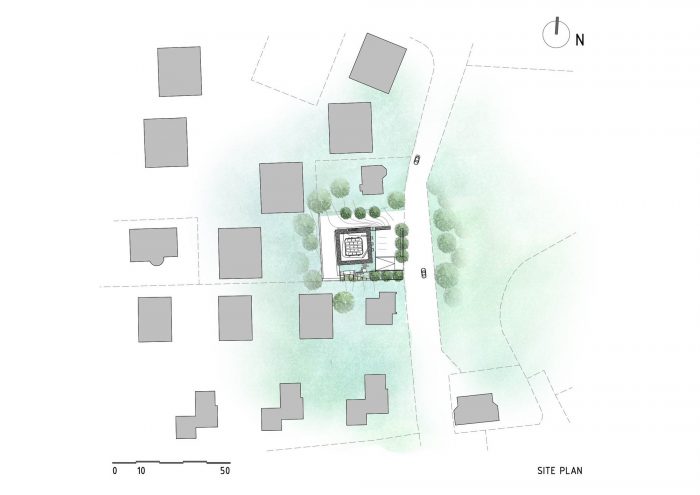

该地块位于布达佩斯第三区Mátyáshegy的郊区住宅区。这个安静的区域原来是一个果园花园区，后来成为一个花园城市区。这个区域现在位于布达佩斯密集的城市结构和外部绿色区域之间--在城市和自然的边界上。GeoConcept有限公司是一家致力于保护环境的建筑工程公司。业主希望在这个郊区环境中为公司建造一个两层的、有地热供暖的、自然采光的、零噪音排放的办公大楼，而且能源消耗极低。
The plot is located in the suburban residential area of the 3rd district of Budapest on Mátyáshegy. This quiet area was originally an orchard garden zone and later became a garden city area. This zone is now located between the Budapest’s dense urban fabric and the outer green zone -on the border of city and nature. The GeoConcept Ltd. is a building engineering company comitted to the protection of environment. The owner wanted to build a two-storey, geothermal heated, natural daylight lighted, zero noise emission office building with extremely low energy consumption in this suburban environment for the company.

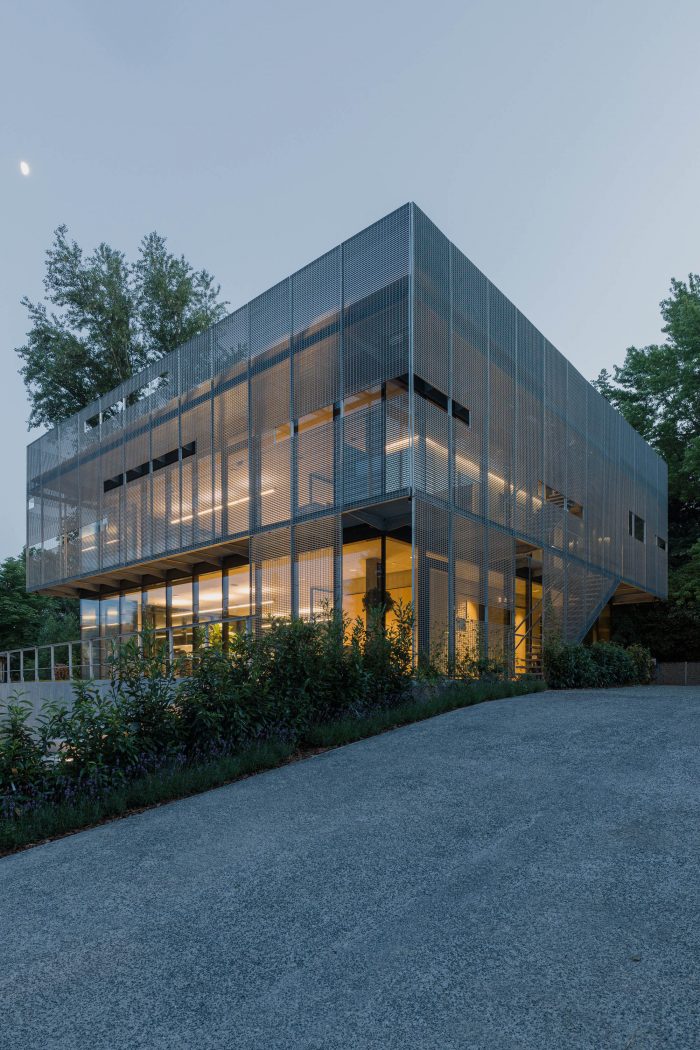

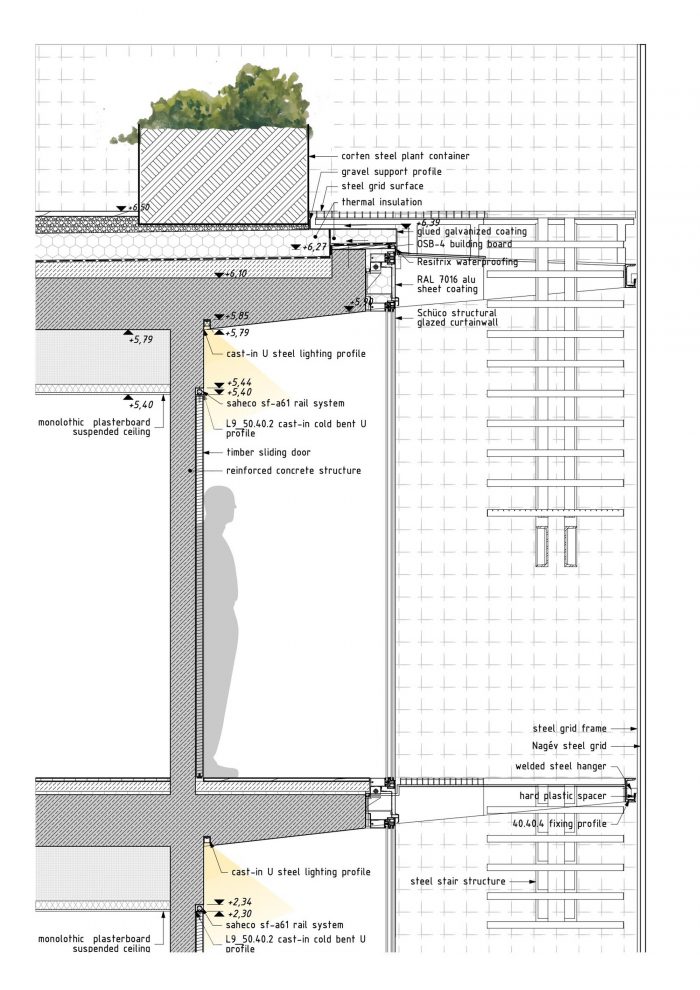

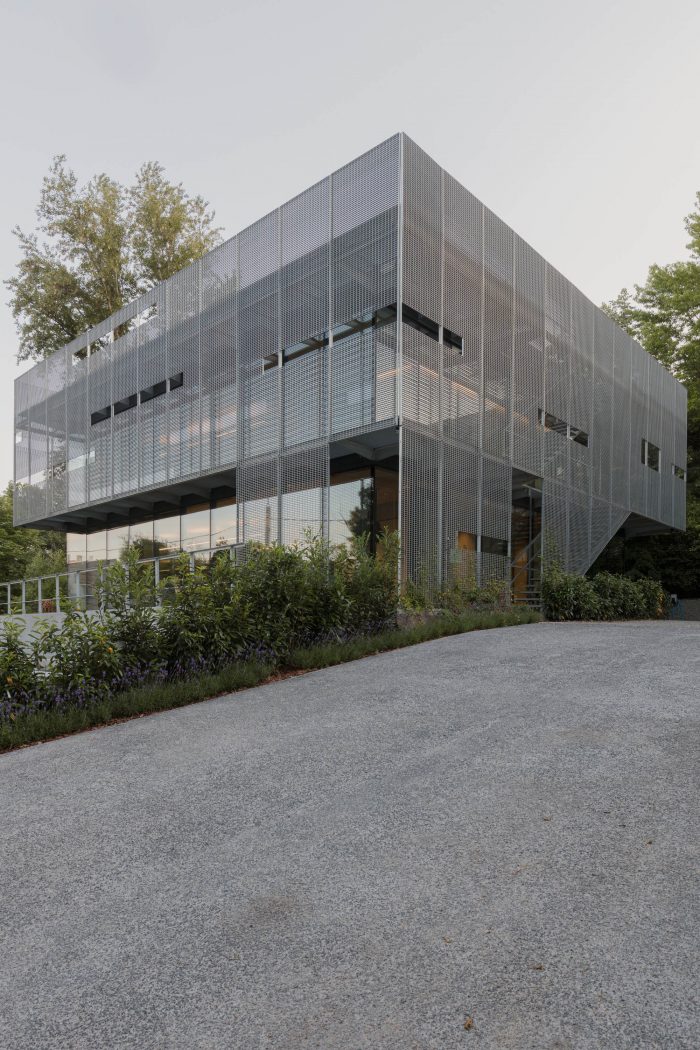

我们的雄心是创造一个紧凑和全面高效的办公楼原型，通过大面积的玻璃创造一个过渡空间，最大限度地与周围的大自然合作。对我们来说，这是一个现代建筑的挑战，在周围的城市环境和规模中，在内部和外部、光和影之间创造一种新的关系。在建筑内部，我们最小化了结构元素，并在建筑核心周围创造了一个灵活的露天办公空间。我们在建筑周围的幕墙前设计了一个悬臂式预制镀锌钢格遮阳系统。钢格子外墙作为一个遮阳解决方案，另一方面，作为一个大型锌屏，它反映了周围的植被。纤细的钢架支撑着不同的不透明度的墙。

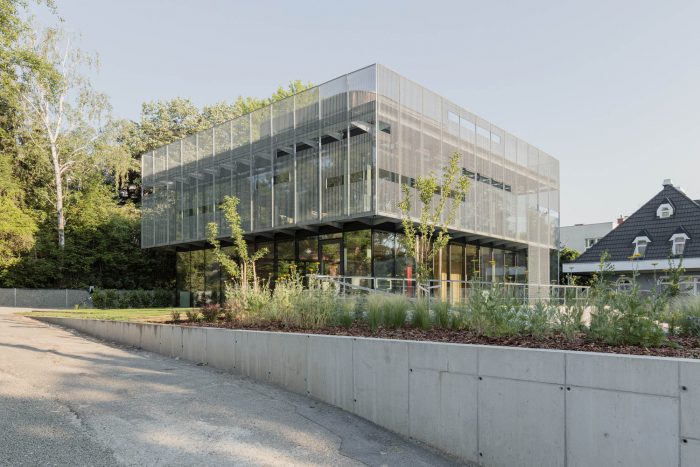

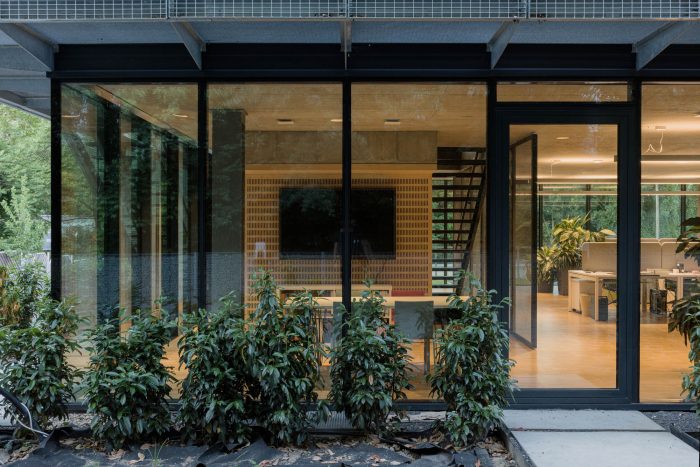

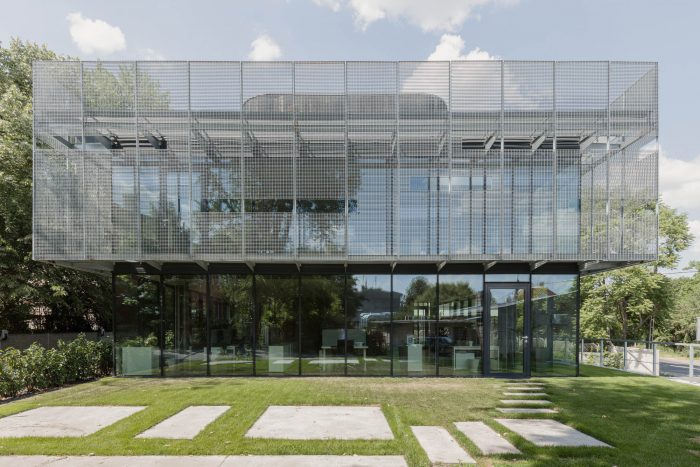

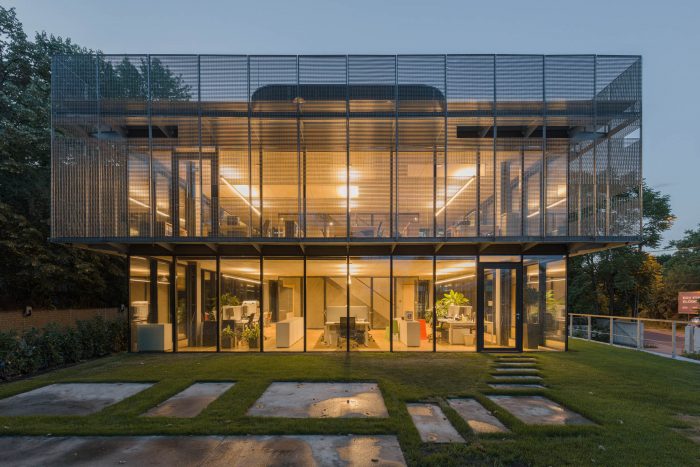

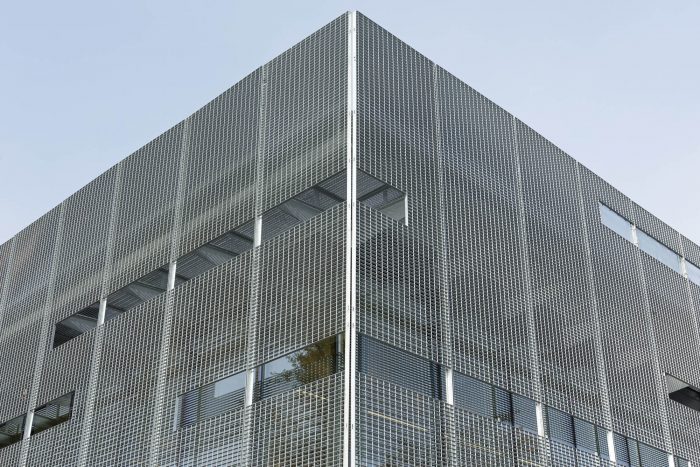

Our ambition was to create a compact and full efficient office building prototype, to create a transitional space that cooperates maximally with the nature around it through large glass surfaces. For us, it was a contemporary architectural challange to create a new relationship between interior and exterior, between light and shade in this surrounding urban context and scale. Inside the building we minimalised the structural elements and created a flexible open-air office space around the building core. We designed a cantileverd prefabricated galvanized steel grid shading systeme around the building, in front of the curtain walls. The steel grid facade acts as a shading solution, on the other hand, as a large zinc screen, it reflects the surrounding vegetation. The slender steel frame supports walls of varying opacity.

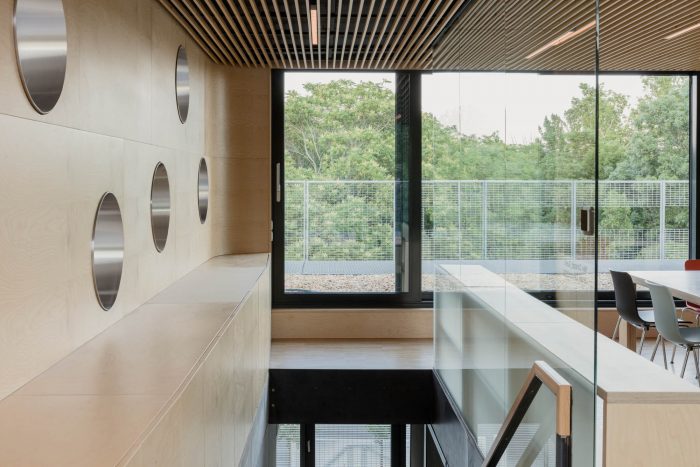

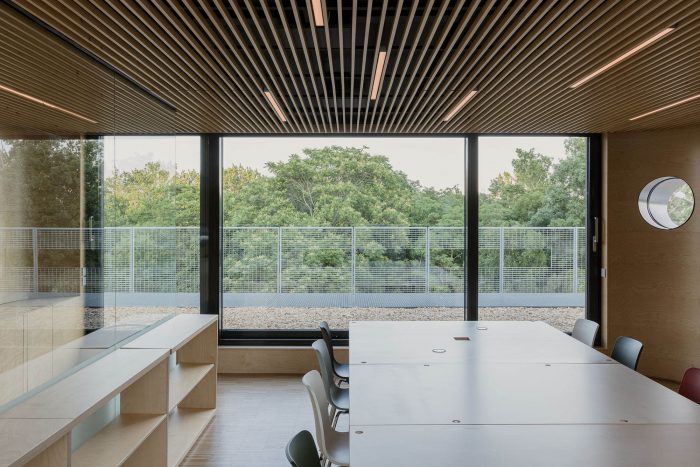

在幕墙和遮阳网之间做了一个外部楼梯，所以办公人员可以自由选择在楼层之间是上到室内还是室外。工人在工作时间可以外出，这为人体提供了物理上的新鲜感，也为交流提供了更广阔的空间。办公空间没有任何分隔--除了办公桌的声学元素--这些都是真正的灵活的开放式办公空间，具有全新的办公生活品牌。分隔模块化桌子的架子可以用轮子滚动，空间可以很容易地根据需要重新安排，所以空间将是动态和优雅的。没有任何东西会干扰视野的清晰度，没有任何装饰，没有任何东西会阻碍集中和自由的办公室工作。所有的机械、通风或电气元件都集成在混凝土板上。该建筑通过地热能源进行加热和冷却。我们设计了一个免费使用的屋顶会议室，可以直接通往屋顶花园。这个露台也可以通过内部或外部楼梯从低层进入。从会议室通过圆形管窗可以看到环境。

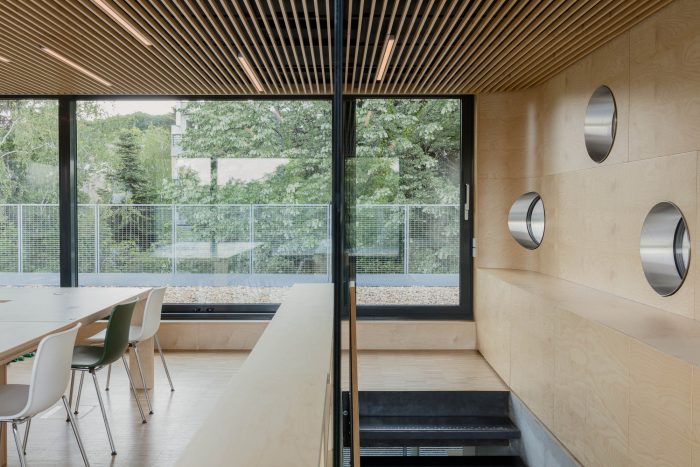

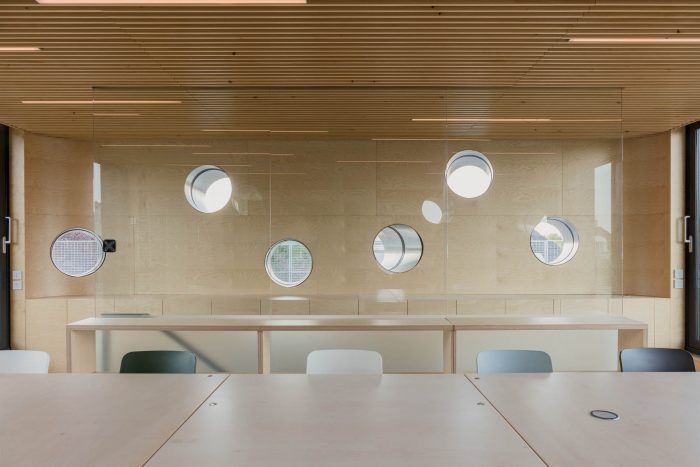

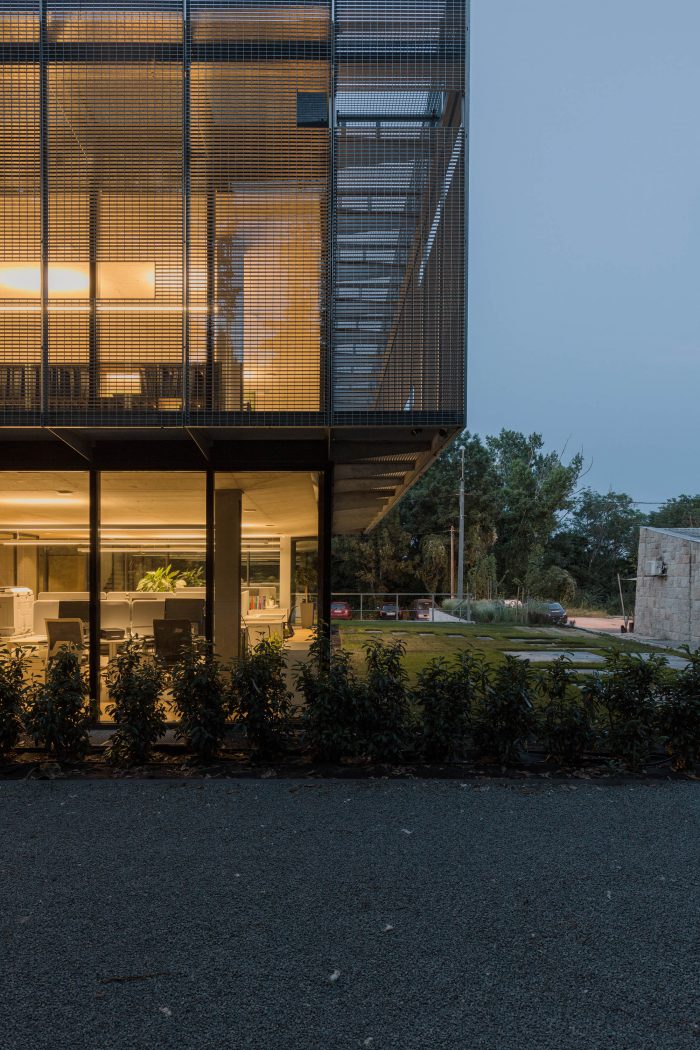

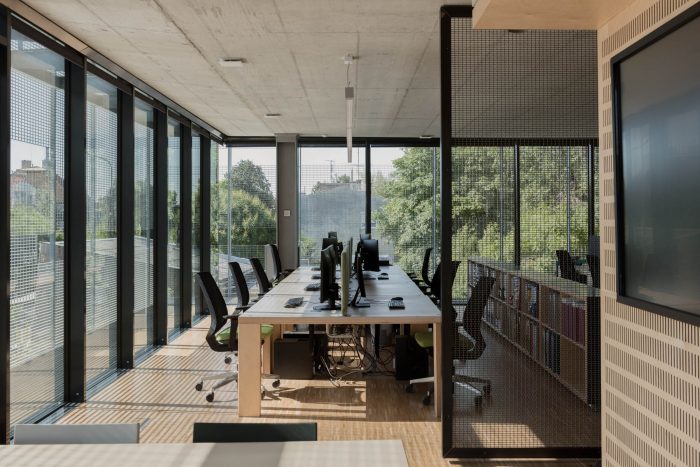

An external staircase is made between the curtain wall and shading grid, so office workers are free to choose whether they want to go up indoors or outdoors between floors. Workers can go out during their working hours, which provides physical freshness to the human body and a wider space for communication. There is no separation in the office spaces -other than the desk acoustic elements- these are real flexible open office spaces with a new office lifestyle brand. The shelves separating the modular tables can be rolled on wheels, the space can be easily rearranged as required, so the space will be dynamic and elegant. Nothing disturbs the clarity of the view, no frills, nothing hinders concentrated and liberated office work. All mechanical, ventillation or electrical elements were integrated into the concrete slabs. The building is heated and cooled by geothermal energy. We designed a free use rooftop meeting room with direct access to the roof garden. This terrace can also be accessed from the lower levels by an internal or external staircase. From the meeting room the environment is revealed through round tube-windows.
Architects: Térhálózat
Area: 645 m²
Year: 2017
Photographs: Balázs Danyi, Bence Pásztor
HVAC: GeoConcept Ltd.
Lighting design: Withlight, BeLight
Landscape design: Modulor, VK Studio Kft
Structural Engineer:Gergely Pataki
Electrical Engineer:István Bakos
Builder:Samuel Albert
Client:GeoConcept Ltd.
Visualisation:Bence Pásztor
Steel Structures:CNC Lemeztechnológia
Wood Works:Pavlicsek és Tsa.
City:Budapest
Country:Hungary
