该项目位于墨西哥城购物中心,是由公寓和办公楼组成的 Mítikah 综合体的一部分。该项目毗邻 Coyoacán 地铁站和大学大道,为用户和游客提供了良好的交通便利,这些用户和游客大多是来此休闲和购物的。

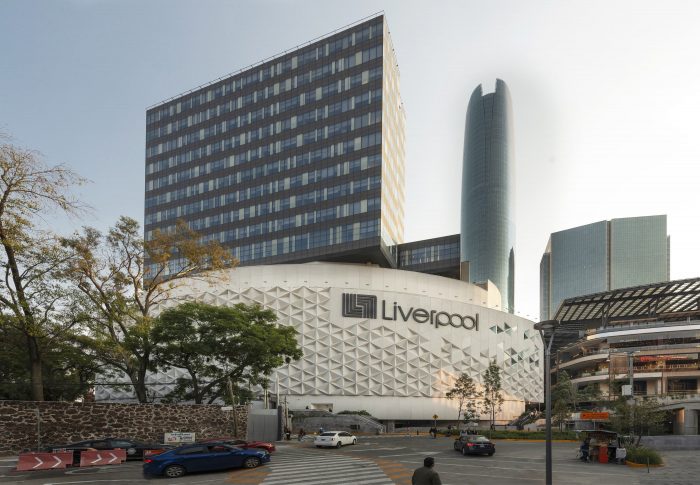

The project is located in the Shopping Center of Mexico City, being part of the Mítikah complex which is conformed of apartments and offices. The proximity to the Coyoacán metro station and Avenida Universidad provides good connectivity for the flow of users and visitors, who are mostly people traveling through the area for leisure and shopping purposes.


建筑立面汇聚在标志着 “Mayorazgo ”街尽头的曲线上,花园广场位于建筑后部。立面被分割成多个内部和外部平面和体量,由带有平面和低浮雕的三角形模块网格组成,形成一个减法金字塔。通过旋转这个金字塔,可以获得多种变量,从而传达出一种运动的感觉。纹理沿着弧形墙壁旋转,在内部部分则以更平整、更切削的方式呈现,但作为设计语言的补充,纹理清晰可辨。作为设计和浮雕游戏的一部分,同样的几何图形通过窗户被减去,窗户框住了一些制高点,使室内能够获得自然采光,并从外部展示了空间的使用情况。

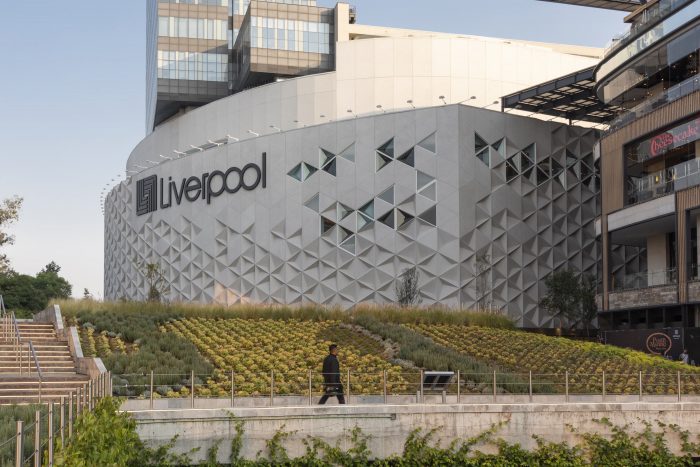

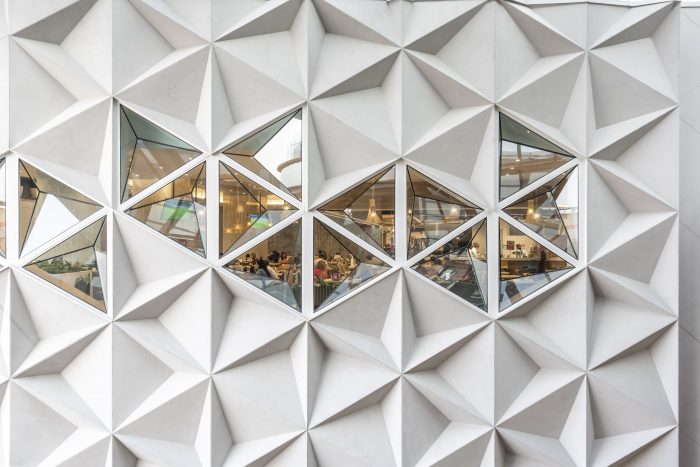

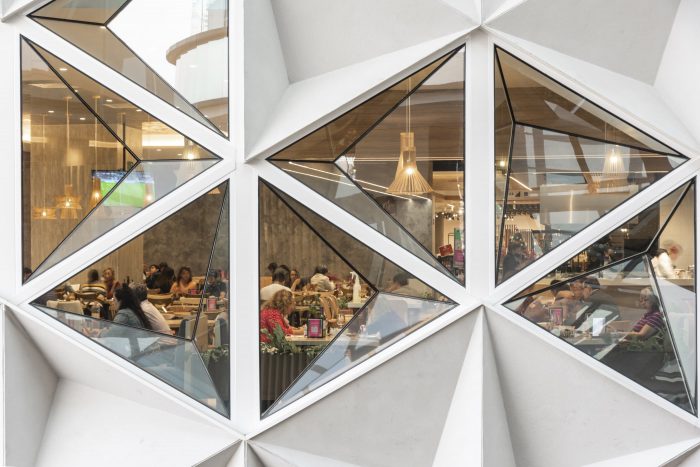

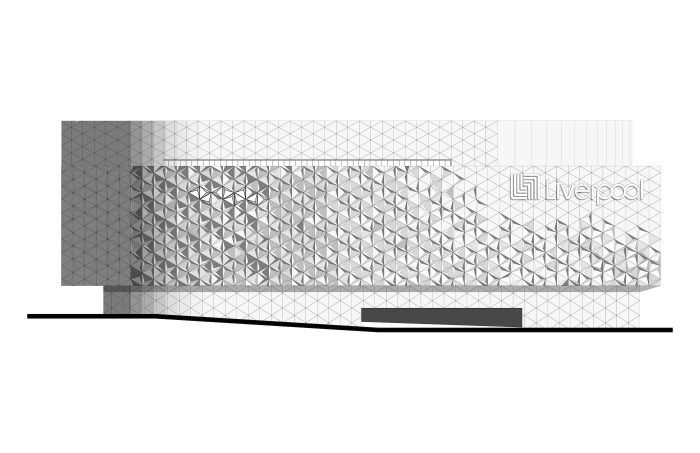

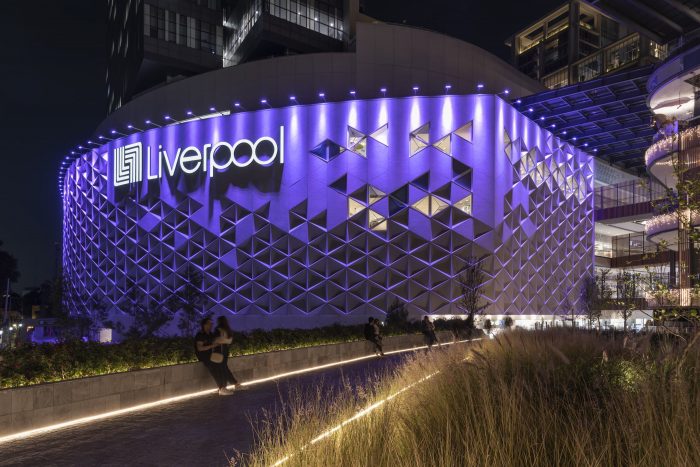

The façade converges on the curve that marks the end of "Mayorazgo" street, where the garden-plaza is located at the back of the property. The façade is segmented into several interior and exterior planes and volumes, formed by a grid of triangular modules with flat and low-relief pieces, which create a subtracted pyramid. By rotating this pyramid, multiple variables can be obtained, managing to convey a sensation of movement. The texture rotates along the curved wall and is presented in a flatter and more cut way in the interior segments, but clearly identified as a complement to the design language. As part of the design and the game of reliefs, the same geometry is subtracted by means of windows that frame some high points, allowing natural lighting inside and showing the use of space from the outside.


这个立面的设计意图是确认作为品牌图形识别一部分的基本模块。这是为利物浦设计的墨西哥共和国境内的第四个建筑立面,通过太阳能照明以及阴影和反射游戏,将数字融入其中。这个项目的规模更加城市化,与用户没有直接联系,因为没有可以从街道上看到的人行通道。从第二层到第五层,这几乎是一个漂浮的立面。

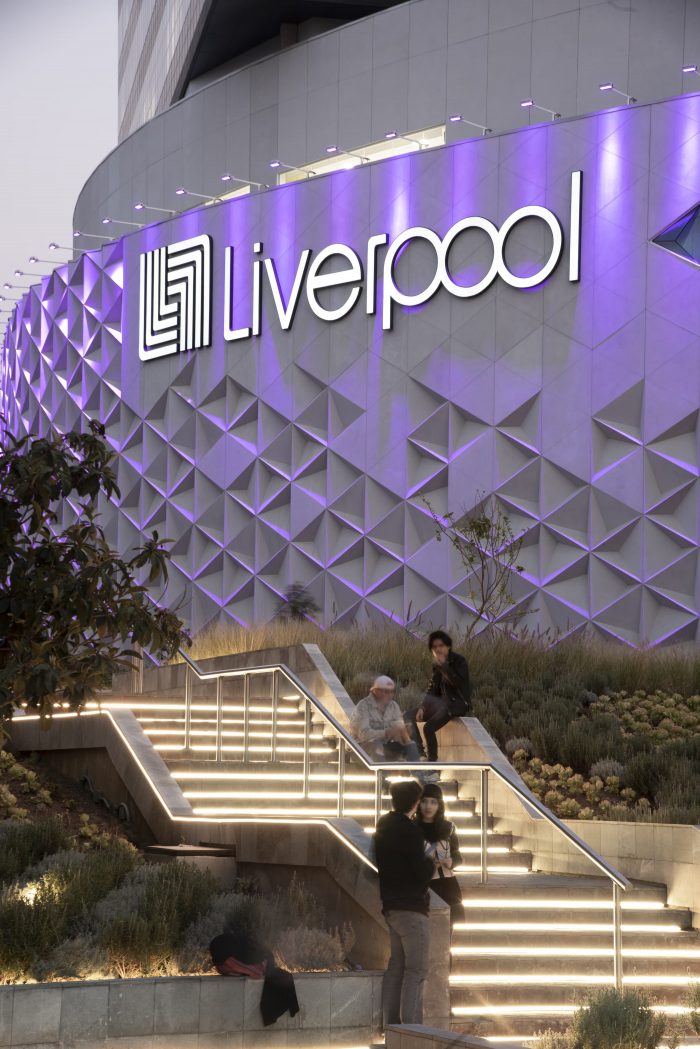

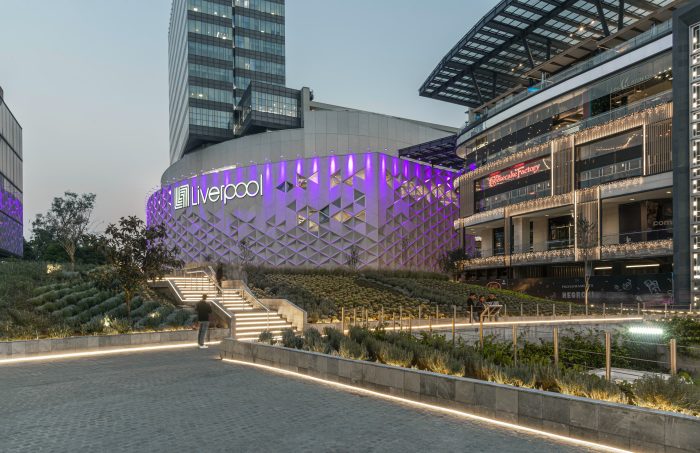

The design intention of this façade is to confirm the basic module as part of the graphic recognition of the brand. This is the fourth façade designed for Liverpool within the Mexican Republic, an exercise that integrates figures by means of solar illumination and the generation of games of shadows and reflections. The scale in this project is much more urban, there is no direct connection with the user since there is no pedestrian circulation that can be referred to from the street. This is an almost floating façade, from the second to the fifth level.


外墙由预制的白色混凝土和金属框架组成。这种材料只需极少的维护,而且由于它是设计好的部件,在放置时可以进行最少的调整。
The construction of the façade is made from precast white concrete on metal frames. This material requires minimal maintenance and, as it is a designed piece, it allows the least number of adjustments in placement.





Architects: MTA+V
Year: 2022
Photographer: Jaime Navarro
City: CDMX
Country:Mexico
