"利用公共区域连接居民的幸福的家"。概念和设计准则 - 以 "生活 "为主要部分的房子。原有土地的角落里有一棵大的帕多瓦树。生活成员包括一个家庭和一只法国斗牛犬作为主角。灵感来自于电影名称 "Happ(y)ness"。幸福 "的拼写是Y，而不是I。幸福不仅是我，也是你。我们希望房子成为每个人的空间，成为幸福的区域，朋友和家人在一起。这个概念被用来设计房子的分区和功能。
“Home utilizing common areas to connect residents’ happiness”. Concept and Design Guideline - The house with “Living” as the main part. The original land has a large Padauk tree at the corner. Living members include 1 family and 1 French Bulldog as the main character. The inspiration started from the movie title “Happ(y)ness”. Happyness is spelled as Y, not I. Happyness is not only I, but also You. We want the house to be everyone’s space and be the happiness area, where friends and family stay together. The concept was used to design house zoning and functions.

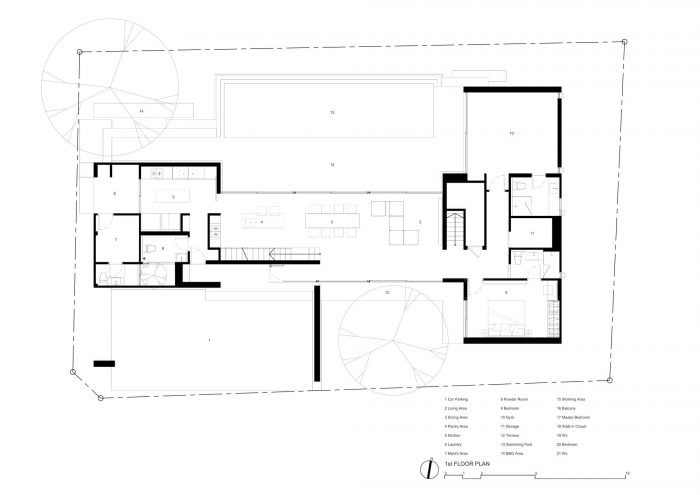

布局和背景 - 业主原本需要在房子的中间有一个庭院。经过建筑师的分区分析，利用Padauk树和中间的院子会很困难。土地也不会得到有效的利用。相比之下，如果我们把自己放在中间，把院子和树移到周围，效果会更好。小院子也分布在整个房子里，以获得更多的绿色区域和更好的氛围。建筑物在东西两侧排列，这与土地布局相适应。建筑物的设计是为了尽量减少阳光的照射。游泳池位于北部，与房子平行。游泳池有助于为房子降温，也是主客厅的一个好风景。

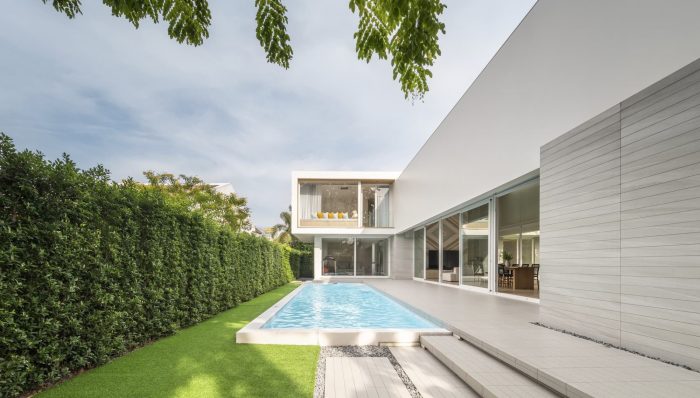

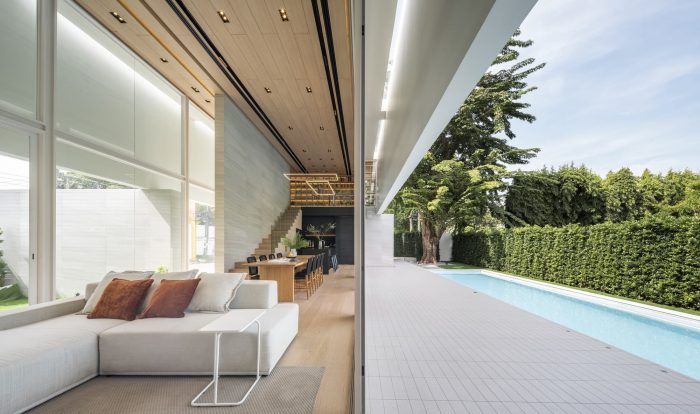

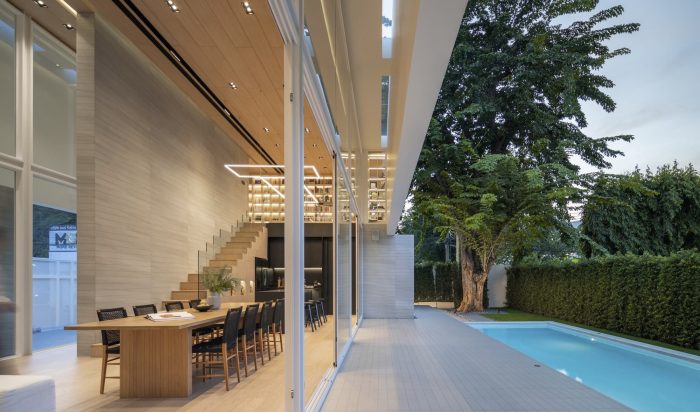

Layout and Context - The owner originally needed the courtyard in the middle of the house. After the architect’s zoning analysis, the utilization of the Padauk tree with the courtyard in the middle would be difficult. The land will also not be effectively utilized. In contrast, it is better if we put ourselves in the middle and move the courtyard and trees around us. Small courtyards are also distributed throughout the house for more green areas and a better atmosphere. The building is aligned on the East-West side, which fitted with the land layout. The building is designed for minimum sunlight. The swimming pool is in the north, parallel to the house. The pool helps cool down the house and is a great view of the master living room.

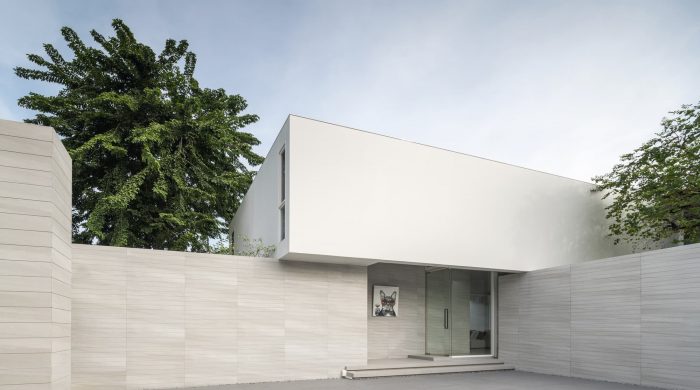

外部设计--建筑被设计成一个纯白色的盒子，漂浮在空中，没有中央支柱，以获得更干净的视线。前院和后院是相连的。从外面看时，干净的墙将是不透明的，以保护隐私。该建筑被设计为一个简单和最小的组件，显示比例美学而不是显示其他组件。建筑的主墙被设计成与房间玻璃有一定的距离，产生空气循环的隔热效果，降低这个高大的大厅的温度。房屋和墙壁之间的光隙将产生来自墙壁的反射光（间接光）。光线将是明亮的，但不足以将热量传递给建筑物。建筑物选择了最简单和中性的色调。白色、灰色和木色，这些都是温暖的、简单的、长期的美丽，被利用起来。

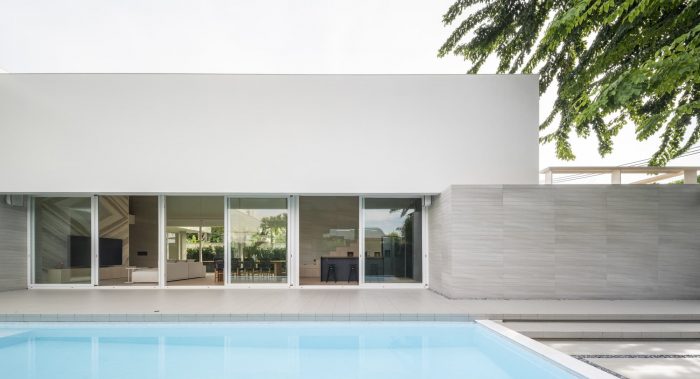

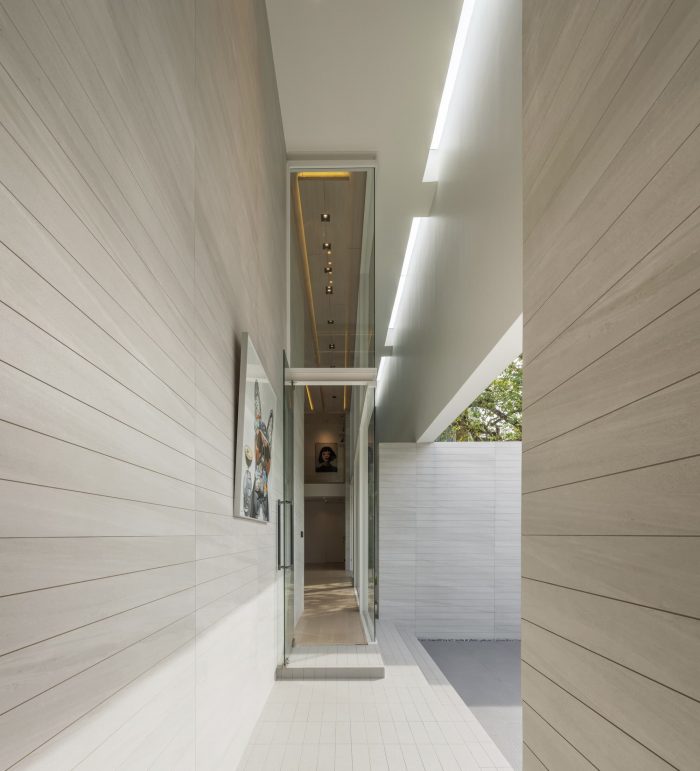

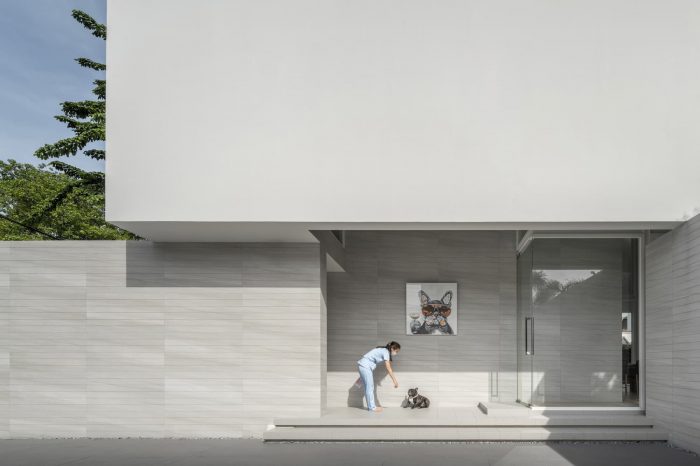

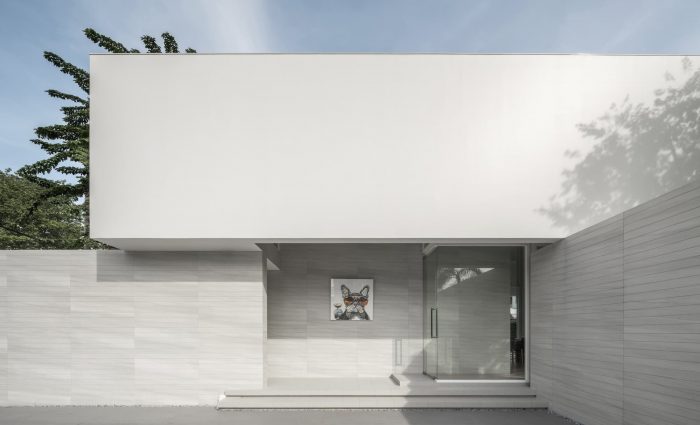

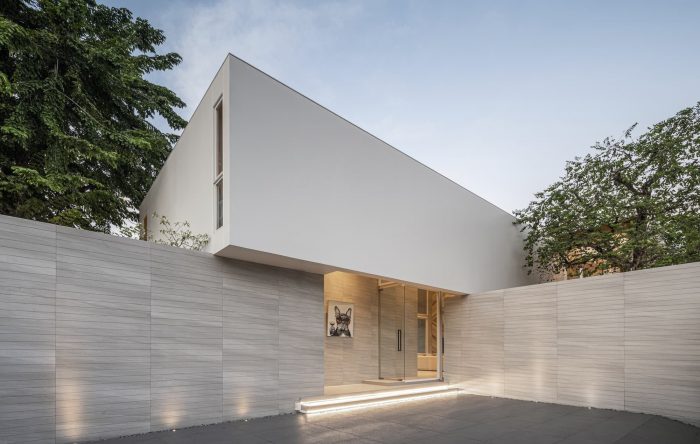

Exterior Design - The building was designed as a plain-white box, floating without a central pillar for a cleaner eye-level view. Front and back courtyards are connected. The clean wall will be opaque when viewed from outside for privacy. The building was designed for a simple and minimal component, showing proportion aesthetics instead of showing other components. The building’s main wall was designed at some distance from the room glass, producing air-circulated insulation and reducing the temperature in this high hall. Light gaps between the house and walls will produce reflected light from the wall (indirect light). The light will be bright, but not enough to transfer heat to the building. The most simple and neutral tones were selected for the building. White, gray, and wood color, which are warm, simple, and beautiful in the long term, were utilized.

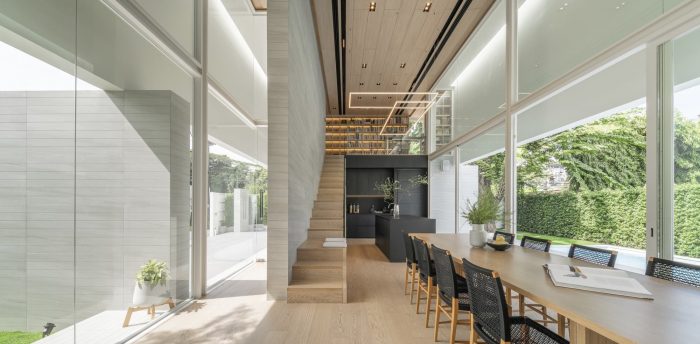

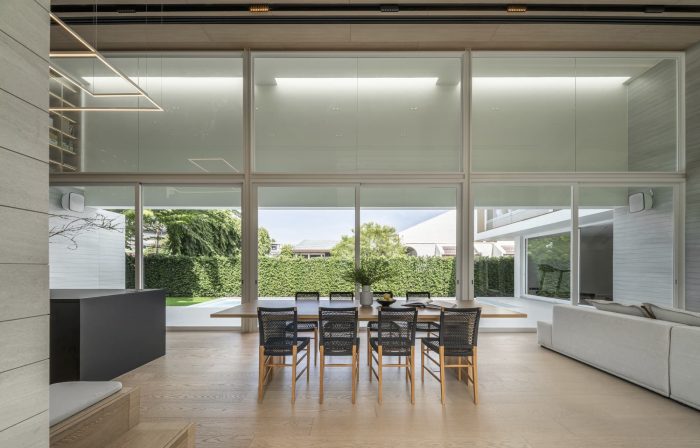

室内设计 - 客厅是所有功能的连接中心。建筑物与外面的游泳池平行，是双间距的。所有重要的功能：生活、游泳、烹饪、工作和休息，都在同一空间内得到利用。对于社交的家庭来说，欢迎客人的区域是必不可少的，但又不能太大，以免被分隔成其他房间。因此，与 "一个区域满足所有幸福 "的理念相匹配。

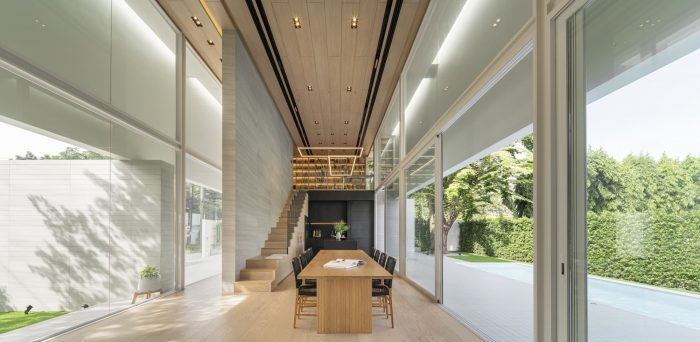

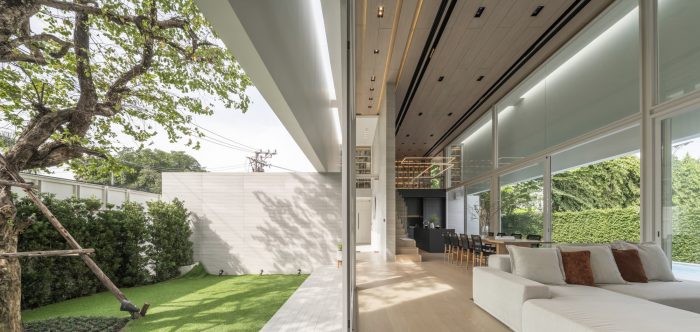

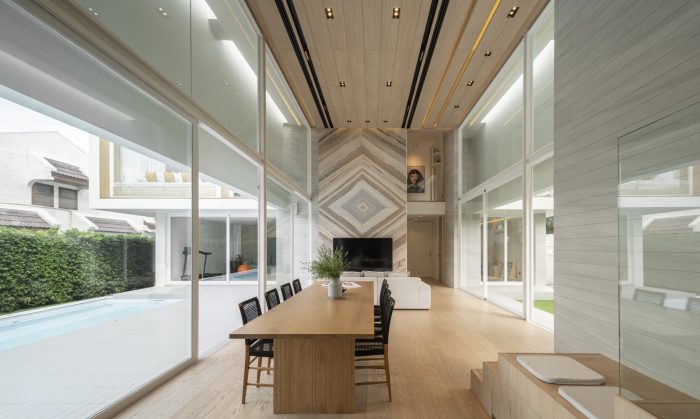

Interior Design - The living room is a center of connection for all functions. The building is double-spaced in parallel with the outside swimming pool. All important functions: living, swimming, cooking, working, and resting, were utilized from the same space. For socializing families, the area to welcome guests is essential but not too large to separate into other rooms. Thus, matching the idea of “one area for all happiness”.

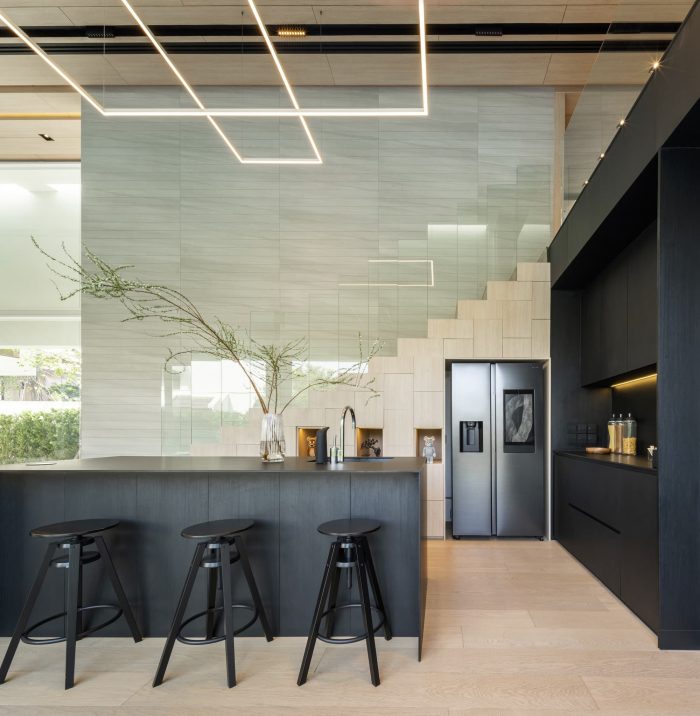

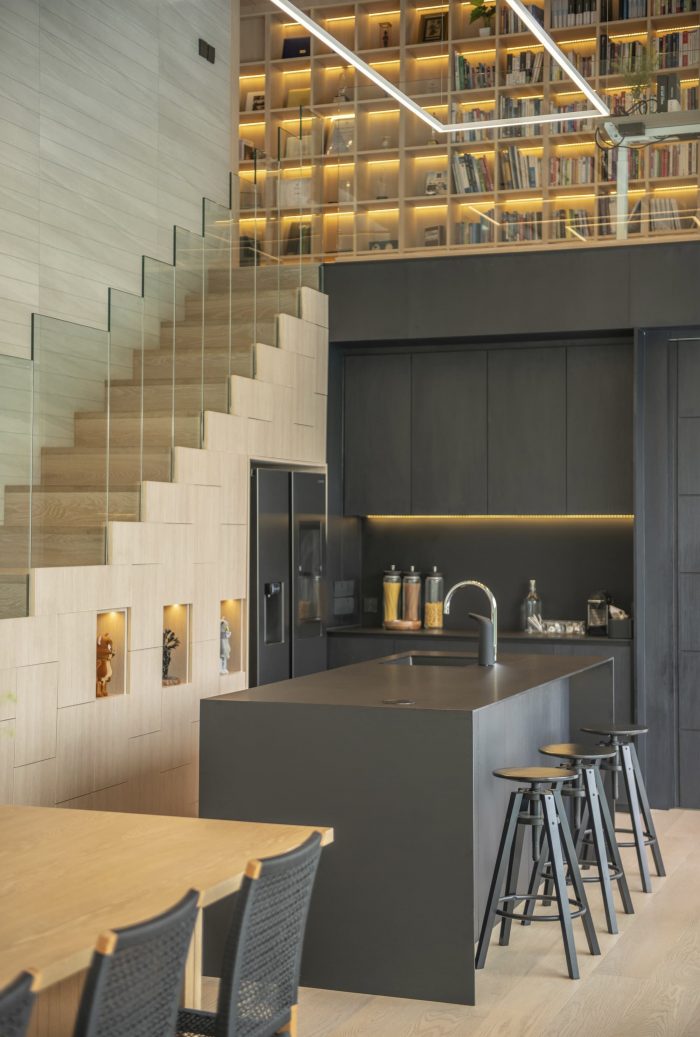

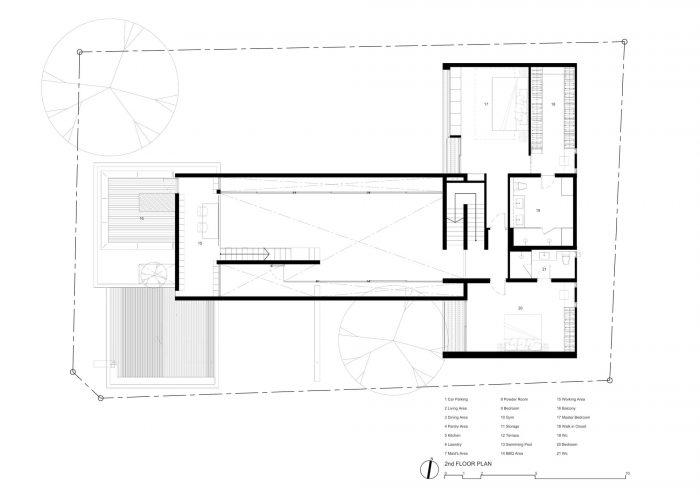

"色彩和室内功能划分"。所有区域都以暖白色、浅灰色和木色为主。对于茶水间区域，它被设计成用黑色材料与其他区域形成对比，看起来更聪明。颜色是不同的，作为小的聚会区，用于绅士们的鸡尾酒会，聚会，或只是心情的变化。 在设计工作间和图书馆时，采用了 "隐私，分层 "的概念。工作区在客厅的夹层上，这样工作间就不会感觉太紧张。还有一个角落是与其他区域不分开的，所以你仍然可以看到孩子和狗的活动。

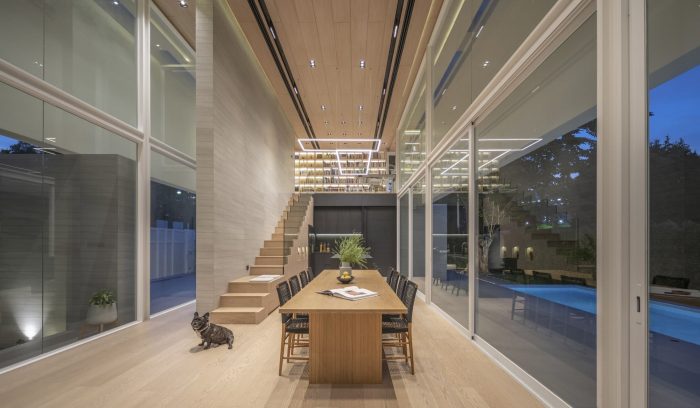

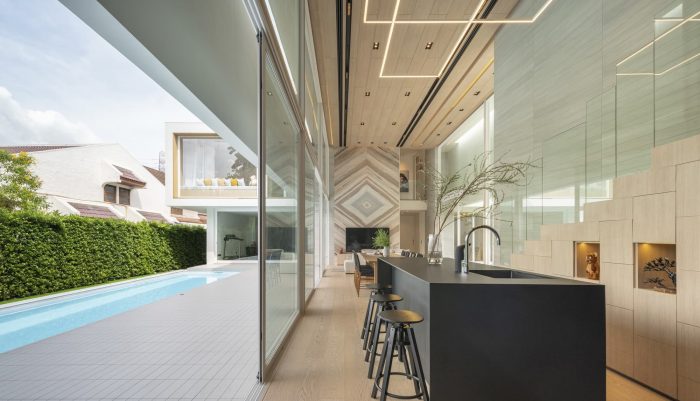

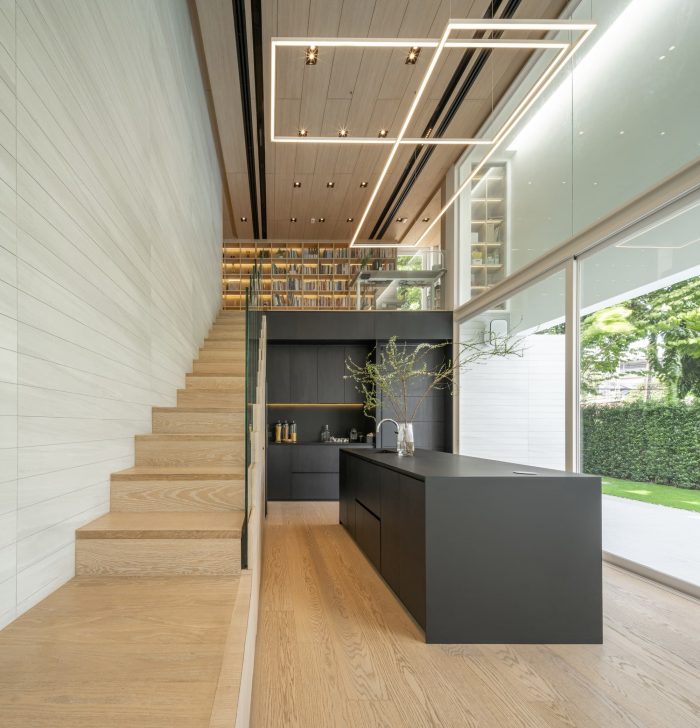

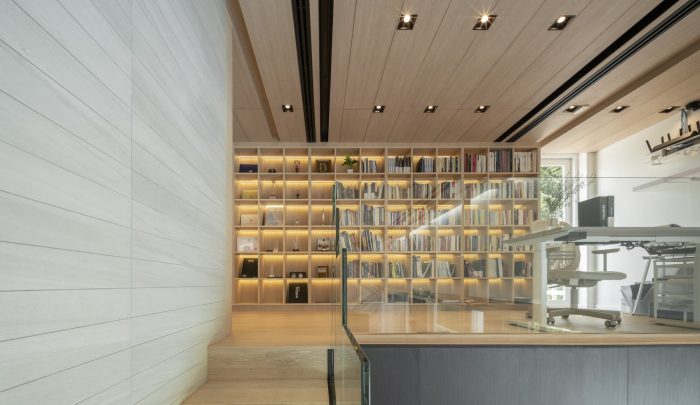

“Color and interior function divisions”. All areas are mainly warm white, light gray, and wood color. For the pantry area, it was designed to look smarter with black materials in contrast with other areas. The color was different to separate as small party zone for gentlemen’s cocktails, parties, or just mood changes. “Privacy, separated by levels” concept was used in designing working rooms and libraries. Working areas are on the living room’s mezzanine floor so that the working room will not feel too tight. There is also a corner that is unseparated from the other areas so you could still see children’s and dog’s activities.

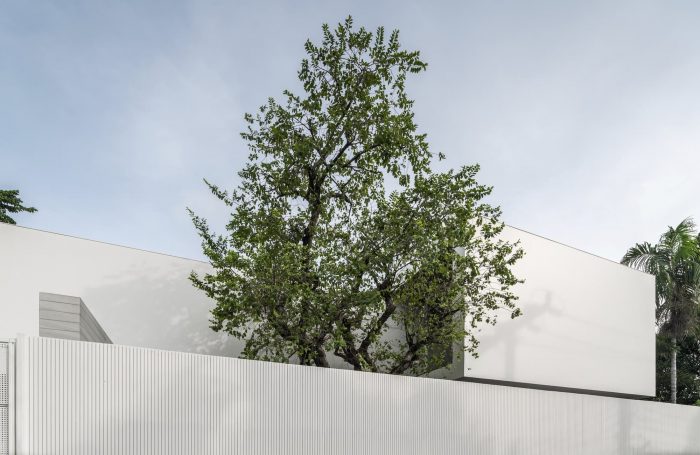

绿色区域设计--所有主要区域的设计都能看到有自己庭院的树木。这个功能是建筑布局的副产品。总的来说，绿色区域的设置是最简单的，因为已经有了一个原始的主树。大树根据需要被添加到院子里，并从树墙上创造出一个绿色的场景，让人更放松，更容易照顾。客人的洗手间被有意设计成有一个小院子，以便更加通风。顶部的光隙可用于种植树木，并用于在夹层的屋顶种植植物。该设计为洗手间产生了更好的氛围，并掩盖了外面的景色。

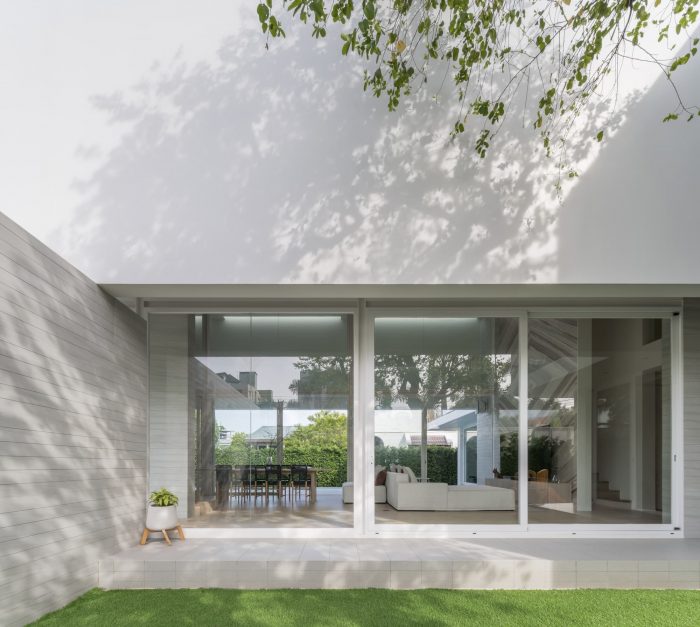

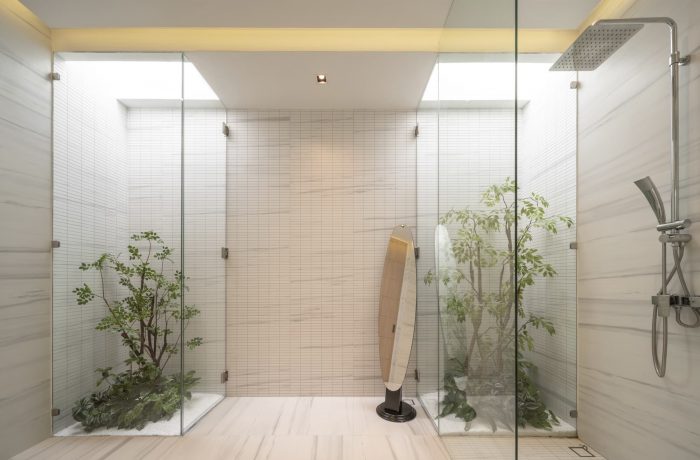

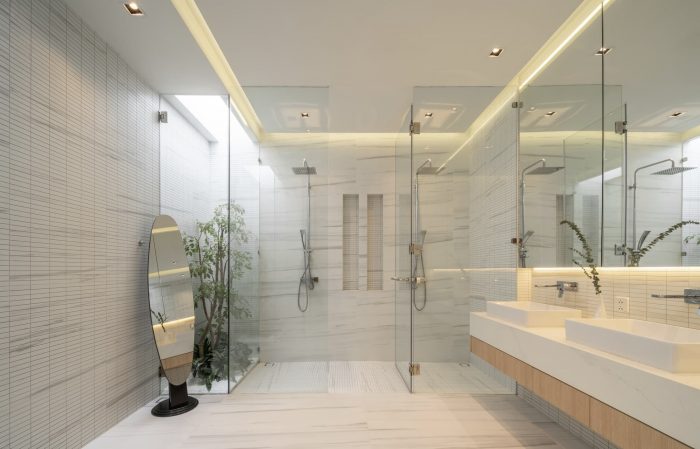

Green Areas Design - All main areas are designed to be able to see trees with their own courtyard. This feature is a by-product of the building layout. Overall green areas are set in the simplest fashion as there is already an original main tree. Big trees were added to the courtyards as necessary and create a green scene from the tree walls for more relaxed and easier care. Guest restrooms were intentionally designed to have a small courtyard for more ventilation. Light gaps are available on the top for planting trees and are used to grow plants on the mezzanine floor’s roof. The design produced a better atmosphere for the restrooms and covered the views from outside.
工作细节 - 材料的水平线被用于简单的设计，但充满了细节。在许多地方，使用了相同的材料，但为不同的尺寸细节增加了线条。较大的材料通过添加水平线而变小，提供幻觉，并使房子看起来更长。这些设计被实施到建筑的墙壁和区域，包括内部和外部。
Work Details - The material’s horizontal lines were used for a simple design but full of details. In many areas, the same materials were used but lines were added for different dimension details. Larger materials were made smaller by adding horizontal lines, providing illusions, and making the house look longer. Those designs were implemented to the building’s walls and areas, both interior and exterior.
Architects: One and a Half Architects
Area : 530 m²
Year : 2022
Photographs :DOF Sky|Ground
Lead Architects : Wichan Kongnok
Interior Design : Jarupong Ng-sirisakul
City : Khet Chatuchak
Country : Thailand
