2018年，Hung Hau集团联系了DE-SO亚洲，对位于越南胡志明市Binh Chanh区的Van Hien大学的主楼外墙进行改造。任务是在建筑现有结构的基础上重新设计外墙，继续项目的建设。拟议的外墙需要与客户的愿景相匹配。客户不希望采用新古典主义的建筑方式，而是希望大学更具有现代感和活力。

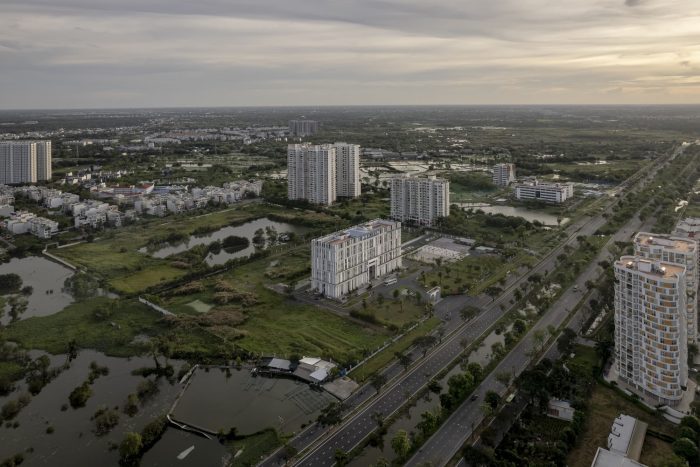

In 2018, Hung Hau Group contacted DE-SO Asia to renovate the main building’s facades of Van Hien University, located in Binh Chanh district of Ho Chi Minh City, Vietnam. The mission was to continue the project’s construction by redesigning the facades based on the existing structure of the building. The proposed facade needed to match the client’s vision. Instead of a neo-classical architectural approach, the client wanted the University to be more contemporary and dynamic.
因此，DE-SO亚洲完全重新设计了项目的外墙，同时遵循一般的体积和最初规划的内部布局。该项目现有的基础特征，即封闭的外围走廊，随后被打开，形成一个露天通道，优化自然通风和舒适度，同时降低维护成本。随后，该机构被委托为整个大学校园和围绕该建筑的几个项目的未来发展提出总体规划。随后，该机构被委托提出整个大学校园的总体规划以及围绕该建筑的几个项目的未来发展。

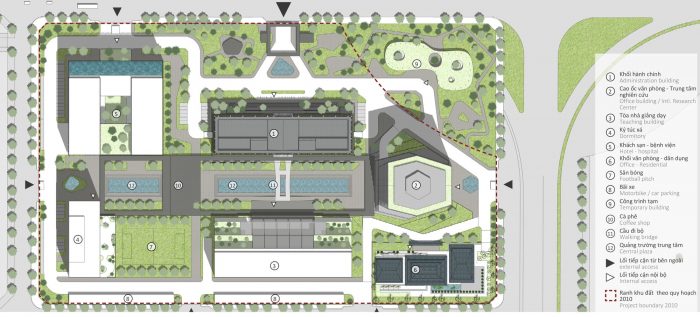

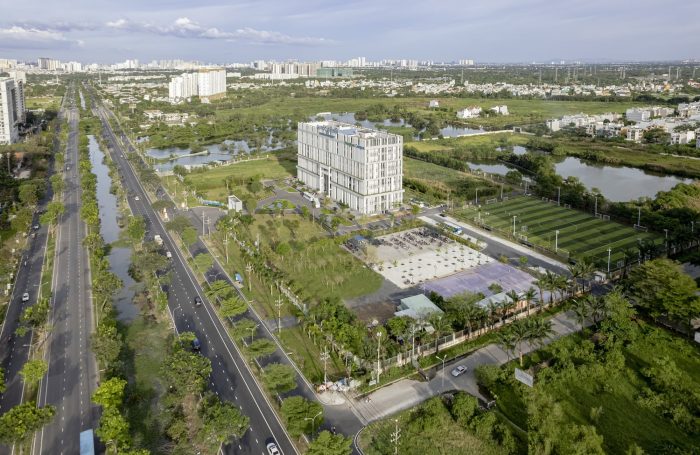

DE-SO Asia, therefore, completely redesigned the facades of the project while following the general volumetry and the initially planned interior layout. The existing founding feature of the project, which is the enclosed peripheral corridor, was then opened up to create an open-air passageway, optimizing natural ventilation and comfort while reducing maintenance costs. The agency was then commissioned to propose the master plan for the entire university campus and the future development of several projects around this building. The agency was then commissioned to propose the master plan for the entire university campus and the future development of several projects around this building.
建立在热带气候下的生物气候通道--热带气候需要最佳的通风和实用的窗户遮阳板，以减少外部和内部空间的热量。
热惯性和隔热不是热带气候下建筑的优先考虑。教室必须有自然光。西贡的空气湿度相对较高（75-80%）。出于健康和安全的考虑（如在COVID等健康风险时期），应优先考虑减少教室内风冷式冷水机的使用，并尽可能促进自然通风。应通过确保良好的通风来限制二氧化碳水平。从教室俯瞰走廊的阴影空间的景色。这是一个合理有效的促进自然通风的解决方案。这种安排也使窗户的打开变得容易和安全。双层外墙和通道的结合使维护变得容易，并减少了制冷的能源成本。如果材料的隔热性能不好，位于外墙的窗户会造成温室效应。
Build In Tropical Climate Bioclimatic Passageways - Tropical climates require optimal ventilation and practical sunshades for windows to minimize heat on the exterior and interior spaces.
Thermal inertia and insulation are not priorities for a building in a tropical climate. The classroom must have natural light. The air humidity in Saigon is relatively high (75-80%). For health and safety reasons (e.g., during times of health risks such as COVID), priority should be given to reducing the use of air-cooled chillers in classrooms and promoting as much natural ventilation as possible. Carbon dioxide levels should be limited by ensuring good ventilation. The view from the classrooms overlooks the shaded space of the corridors. It is a rational and effective solution to foster natural ventilation. This arrangement also allows easy and secure opening of the windows. The combination of a double facade and passageways makes maintenance easy and reduces the energy costs of cooling. Windows located on the facade will cause a greenhouse effect if the material’s insulation is poor.
外墙由双层皮肤组成--在外面，一个由随机预制的垂直过滤器组成的过滤器延伸到两层，围绕着整个建筑的外围。这种垂直排列在水平方向上被热带物种的条带和花盆隔开，这将有助于加强通道上的太阳能过滤器。

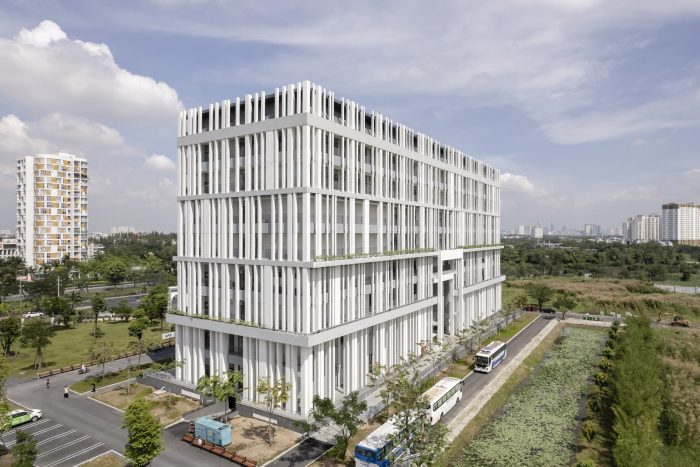

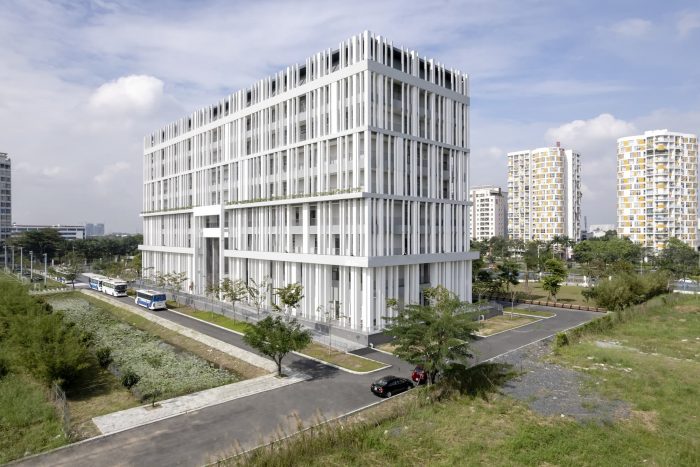

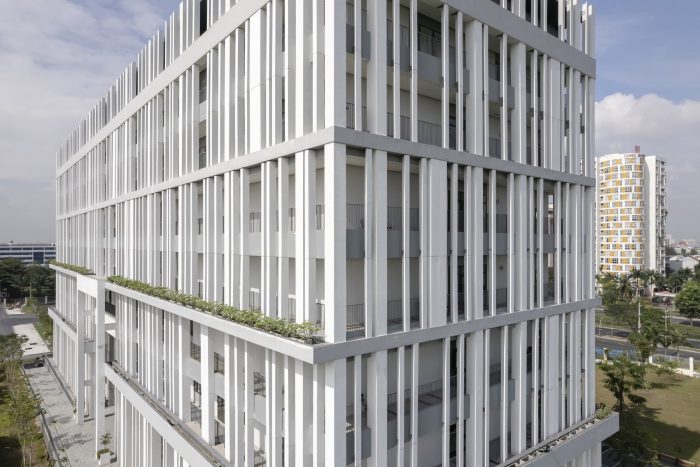

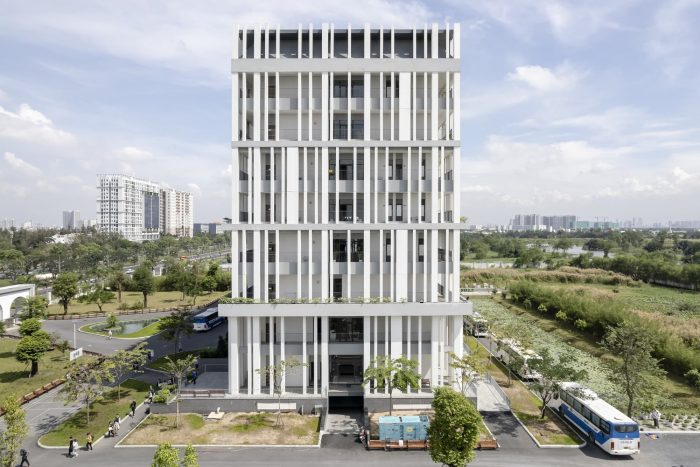

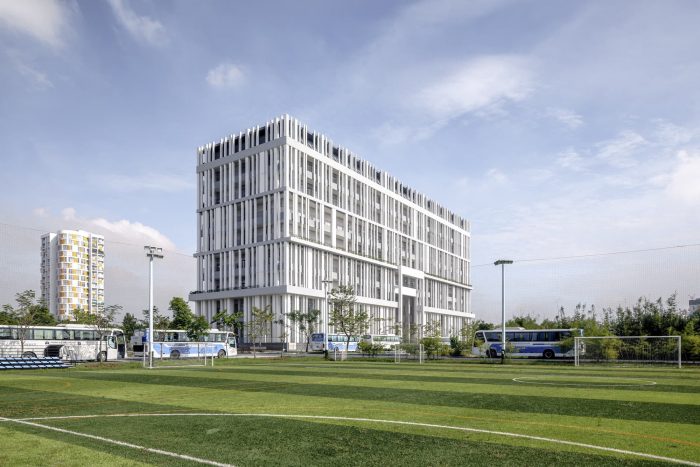

The facade consists of a double skin - On the outside, a filter of random precast vertical filters stretches over two levels and around the entire periphery of the building. This vertical arrangement is separated horizontally by strips and planters with tropical species, which will help to strengthen the solar filter on the passageways.
这些垂直的过滤器像书架上的书一样自由排列。滤光器的双重高度改变了建筑外观的体积比例，使建筑显得很有气势。滤光器的大小不一，投射在通道上的阴影的变化使外墙的音乐性更加活跃。在内部，教室的外墙背对着过滤器，免受雨水和阳光的影响；维护变得很容易。教室墙壁的灵感来自越南渔船的颜色和湄公河三角洲许多家庭中的绿松石蓝。

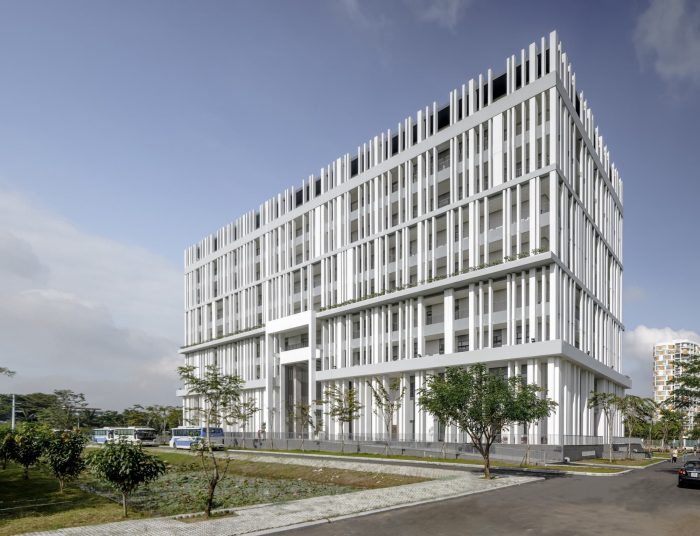

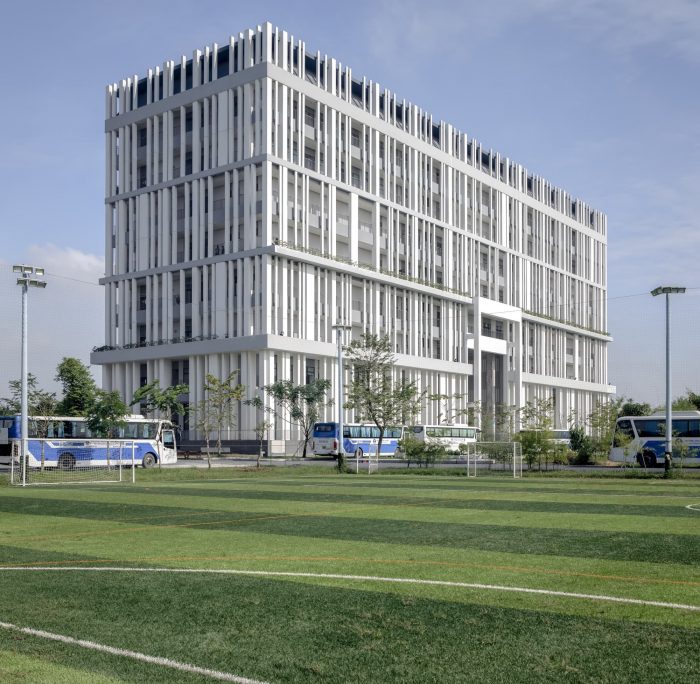

These vertical filters are arranged freely like the books on a bookshelf. The double height of the filters transforms the volume proportions of the building’s exterior and makes the building appear imposing. The filters vary in size, and the variations of the shadows cast on the passageways enliven the musicality of the facade. On the inside, the facade of the classrooms, set back from the filters, is protected from the rain and the sun; maintenance becomes easy. The classroom walls are inspired by the colors of Vietnamese fishing boats and the turquoise blue found in many homes in the Mekong Delta.
这些颜色也是Hung Hau集团品牌标识的颜色。这些响应太阳节律的通风和遮阳的通道是全天的生活空间：好在有高高的栏杆和绷紧的电缆保护。而不是嘈杂的室内走廊。这些开放的走廊将提供一个更安静的氛围，学生在课间可以聚集在一起。

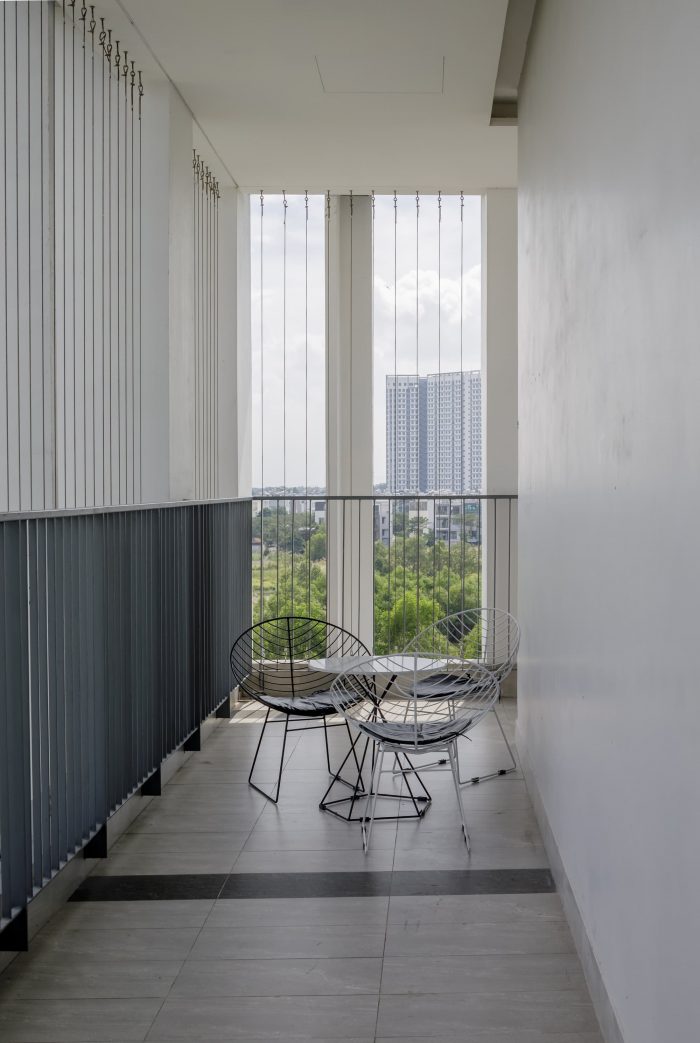

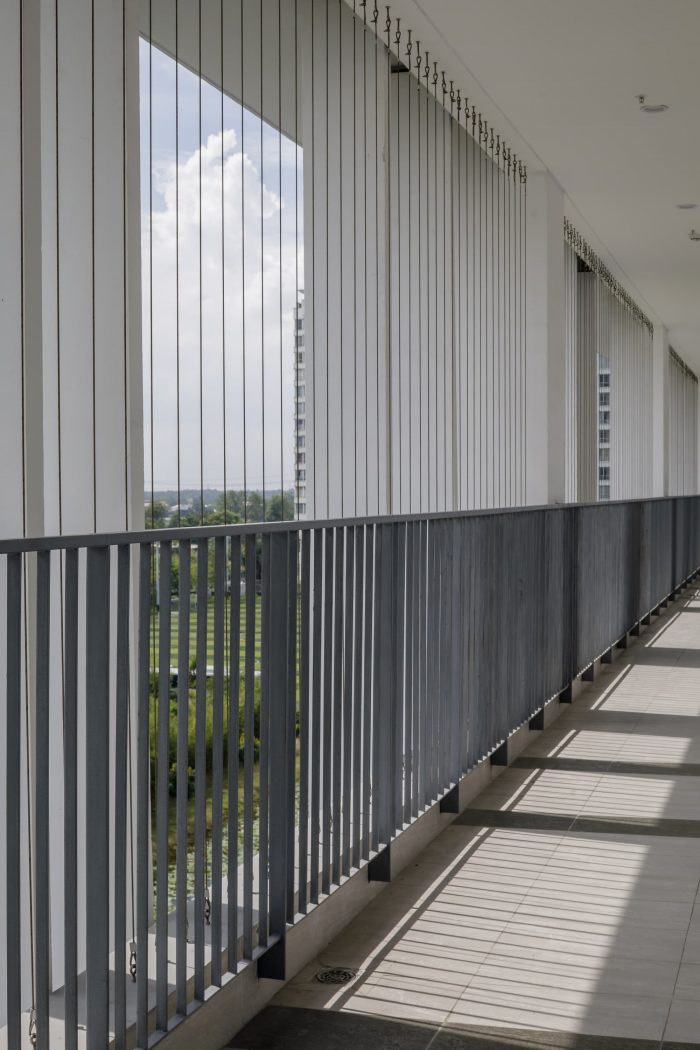

These colors were also the colors of the brand identity of the Hung Hau group. These ventilated and shaded passageways responding to the solar rhythm of the day are the living spaces all day long: well, protected by a high railing and taut cables. Instead of noisy interior corridors. These open corridors will provide a quieter atmosphere where students can gather during inter-classes.
Architects: DE-SO
Area : 16000 m²
Year : 2022
Photographs :Giuseppe de Fransceco
Manufacturers : Zbeton
Lead Architects : Olivier Souquet
Engineering : RFR Vietnam
Design Team : Nguyễn Bá Định, François Barberot, Nguyễn Xuân Trang
Clients : Hung Hau University
City : Phong Phú
Country : Vietnam
